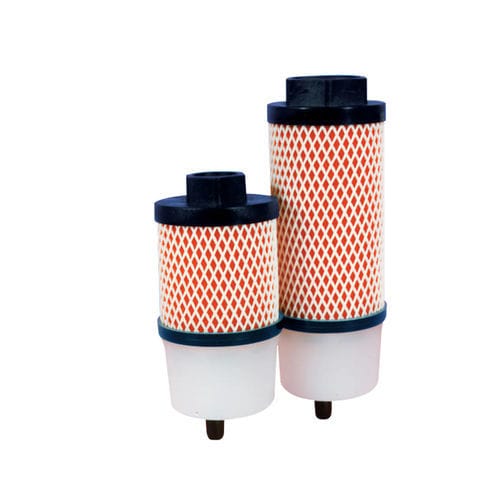

Oil mist collector MIST-X series

filtration media

Product Overview
The MIST-X is an oil mist eliminator and exhaust silencer designed to prevent oil-laden compressed air from being expelled to the atmosphere while reducing exhaust noise to accepted safety levels. Suitable for industrial compressed air and nitrogen applications, it helps maintain a cleaner, safer workplace.

Features

• Removes oil mist from exhausted compressed air
• Reduces exhaust noise by approximately 25 dBA
• Improves workplace air quality
• Suitable for compressed air and nitrogen gas systems
• Available with BSPP or NPT connections

Available Models

• MIST-X25 — Flow Rate: 90 m3/hour at 7 barg (53 CFM at 102 psig); Port Size: 1/2 inch
• MIST-X50 — Flow Rate: 180 m3/hour at 7 barg (105 CFM at 102 psig); Port Size: 1 inch
• MIST-X150 — Flow Rate: 540 m3/hour at 7 barg (315 CFM at 102 psig); Port Size: 1-1/2 inch

Technical Specifications

• Division: Gas Separation and Filtration Division EMEA
• Brand: Parker
• Technology: Filtration
• Product Type: Oil Eliminator / Exhaust Silencer
• Product Series: MIST-X
• Application: Compressed air and nitrogen gas applications
• Industry: Industrial manufacturing; Food & Beverage; Automotive; Electronics; Pharmaceuticals; Medical & Dental
• Flow Rate: 90 to 540 m3/hour at 7 barg (53 to 315 CFM at 102 psig)
• Port Size: 1/2 to 1-1/2 inch
• Connection Type: BSPP or NPT
• Noise Level: ~25 dBA reduction
• Operating Temperature: 2 to 50 °C (36 to 122 °F)
• Height: 113 to 206 mm (4.4 to 8.1 inch)
• Diameter: 60 to 86 mm (2.4 to 3.4 inch)
• Weight: 100 to 370 g (3.5 to 13 oz)
