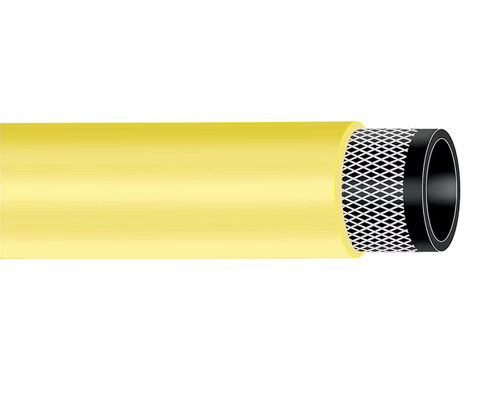

Gas hose Carbo G NW/L 10 - NB/R 10
EPDMNBRtransfer

Gas hose - Carbo G NW/L 10 - NB/R 10 - Parker Hose Products Division - Europe - EPDM / NBR / transfer
Gas hose - Carbo G NW/L 10 - NB/R 10 - Parker Hose Products Division - Europe - EPDM / NBR / transfer
Gas hose - Carbo G NW/L 10 - NB/R 10 - Parker Hose Products Division - Europe - EPDM / NBR / transfer - image - 2
Add to favorites
Compare this product

Characteristics

Use
for gas
Material
EPDM, NBR
Applications
transfer, process
Other characteristics
reinforced
Inner diameter

8 mm, 13 mm
(0.315 in, 0.512 in)

Outer diameter

13 mm, 20 mm
(0.512 in, 0.787 in)

Pressure

150 psi

Temperature

Min.: -30 °C
(-22 °F)

Max.: 90 °C
(194 °F)

Delivered length

50 m
(164'00" )

Description

Carbo G NW/L 10 - NB/R 10 is designed for the connection of household appliances to the gas line (type NW/L) in indoor applications or to Liquefied Petroleum Gas (LPG) bottles (type NB/R) for outdoor applications. The premium grade materials with low permeation and superior resistance to aging and weathering guarantee a safe use. Additionally hose and production process is quarterly tested and supervised by the IMQ (Italian Institute of Quality Approval) to assure you a constant level of high quality. Markets • Domestic appliances • Vocational Features/Benefits • Low permeability for a even safer use • Available in long continuous lengths providing maximun versatility • Design Factor Value 3:1 enhances safety for operators and equipment • Superior tensile strength to resist to accidental tears Applications • Domestic gas, Liquefied Petroleum Gas (LPG) • Gas stoves • Gas barbecues and grills • Camping burners • Gas fireplaces
