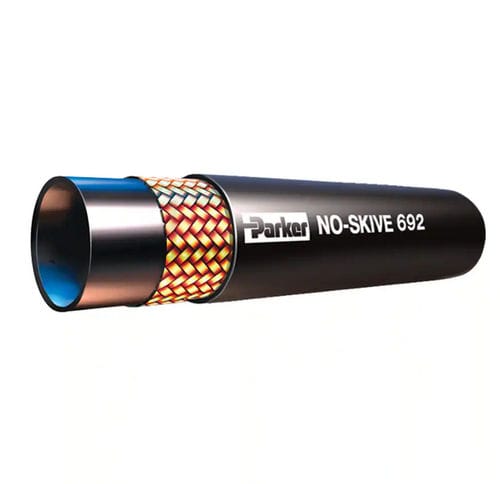

Hydraulic hose 692 series
steelNBRmedium-pressure

hydraulic hose
hydraulic hose
Add to favorites
Compare this product


Characteristics

Use
hydraulic
Material
NBR, steel
Applications
medium-pressure
Other characteristics
flexible, abrasion-resistant, standard
Inner diameter

Max.: 15.9 mm (0.626 in)

Min.: 6.4 mm (0.252 in)

Outer diameter

Max.: 48.7 mm (1.917 in)

Min.: 11.5 mm (0.453 in)

Pressure

3,045 psi

Temperature

Max.: 100 °C (212 °F)

Min.: -40 °C (-40 °F)

Description

Parker's Medium Pressure No-Skive Compact hoses 692,692Twin, 692PU, 692PU Twin and 692TC are mainly developed to meet the requirements of general small bending radii hydraulic applications. The hoses are designed for a constant working pressure of 21,0 MPa and are the preferred product solution for lifting and materials handling applications where tight bending radii, flexibility, ozone, abrasion and shock résistance are required. 692PU and 692PU Twin hâve been specially developed to meet the challenges of over -the-sheave applications. This is why their main applications are forklift masts, telehandlers and materials handling equipment. In addition to that the range includes also the hose type 692TC with a highly abrasion résistant MSHA approved Tough Cover. Tough Cover (TC) offers 80 x greater abrasion résistance than standard cover. Markets: • - Lifting and Materials Handling Equipment • - General small bending radii hydraulic applications Features/Benefits: • - Matched hose and fitting System guarantees an approved and safe combination and the highest quality and safety combined with the longest service life of the final product to the end-users • - Very tight bend radii allowing compact machine design • - Nitrile (NBR) inner tube for extended fluid compatibility • - 692PU/692PU Twin are very flexible and manufactured with premium-quality polyuréthane cover • - 692TC has a highly abrasion résistant and MSHA approved Tough Cover (TC). • - Complété No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly
