Air filter FF4 series

gascartridgecoalescing

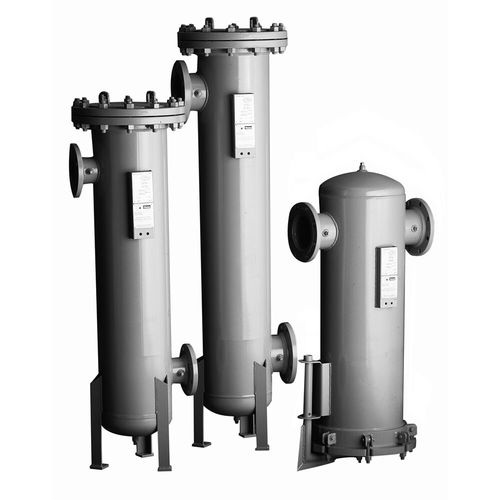

Parker’s Finite filter vessels eliminate oil, water, and particulate contamination from large flows of compressed air and gas. Parker’s Finite filters large capacity ASME filter vessels have been designed specifically for our coalescing elements and incorporate large sump capacities and generous exit cavities for maximum performance with low differential pressures. All units are "U" stamped and conform to ASME Section VIII standard code for pressure vessels. With flow capacities to 37,000 SCFM and optional materials of construction, most compressor source filtration requirements can be met. Features/Benefits • Flow capacities up to 37,000 scfm • Port sizing up to 16" • Coalescing, particulate, absorber, and water separator filter elements available • Floor-standing or Line mounted (T-type) configurations available • Designed per ASME code / CRN (Canadian Registration) • Maximum temperature 450°F • Max Pressure 185 PSIG, (higher pressures upon request) • Each filter vessel has a 1/2" drain and vent ports • Filter vessels allow for easy element change out
