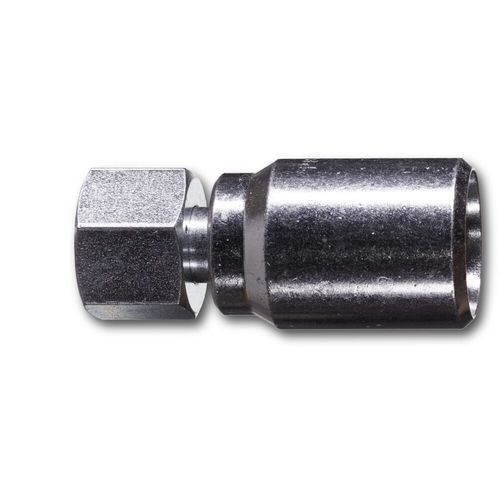

Hose fitting BL
hydrauliccrimpBSP

hose fitting
hose fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
crimp
Norms
BSP, NPT, UNF
Material
stainless steel
Gender
male
Other characteristics
with O-ring, union, high-pressure, swivel, for hoses
Operating pressure

10,000 psi, 15,000 psi, 17,400 psi, 20,300 psi, 23,200 psi

Description

Parker Polyflex High Pressure BL Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts. Markets: • Construction machinery • Industrial • Mining Feature/Benefits: • The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life. • Made with high quality materials for corrosion resistance, and improved system availability due to less down times. • Multiple sizes and connections are available for the right connection for your application. Applications: • High pressure service for construction and shipbuilding industries • Industrial cleaning • Hydraulic applications in mining environment • Suitable for waterplast hose types with working pressure from 120 up to 160 MPa (17.400 up to 23.200 psi) DN10, 12, 20 Hose I.D. (size) -6, -8, -12 Hose Inside Diameter 3/8, 1/2, 3/4 inch Connection Type NPT, BSP, UNF, Metric, ACME, ACME - 2G Length 80, 90, 98, 68, 71, 82, 77, 84, 97, 267, 275, 250, 241, 290, 286, 265 mm 3,1, 3,5, 3,9, 2,7, 2,8, 3,2, 3, 3,3, 3,8, 10,5, 10,8, 9,8, 9,5, 11,4, 11,3, 10,4 inch Maximum Operating Pressure 23200, 20300, 17400, 10000, 15000 psi Shape Straight Product Style National Pipe Tapered (NPT) male, BSP female swivel (60° cone), Type “M” female swivel, Metric female swivel heavy series with O-ring, NPT Male fitting, API flange, swivel, API Hub, 1502 Hammerlug union male, 1502 Hammerlug union male, segmented, 2202 Ham
