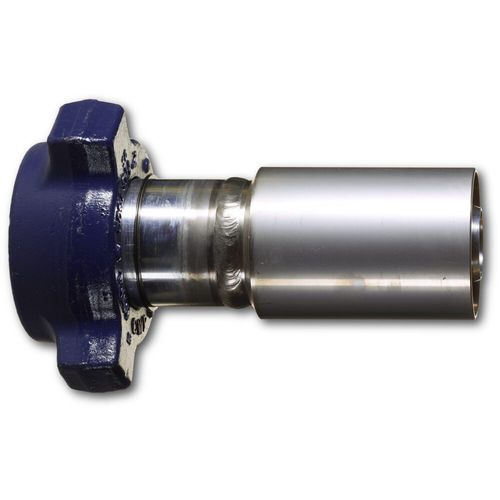

Hydraulic fitting 5X
crimpBSPUNF

hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
crimp
Norms
BSP, UNF
Material
stainless steel
Other characteristics
NPT, transfer
Operating pressure

Min.: 5,000 psi

Max.: 36,250 psi

Description

Parker Polyflex High Pressure 5X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts. Markets: • Industrial • Oil & Gas • Construction machinery • Marine Feature/Benefits: • The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life. • Made with high quality materials for corrosion resistance, and improved system availability due to less down times. • Multiple sizes and connections are available for the right connection for your application. Applications: • High and Ultra High pressure cleaning and jetting • Media transfer (petroleum, synthetic hydraulic fluids, gas and chemical fluids) • Especially suitable for hydraulic pre-tensioning equibment, test rigs, as well as in offshore oil applications • Suitable for hydraulic hose types with working pressure from 140 up to 250 MPa (20.300 up to 36.250 psi) Nominal Hose Inside Diameter 5, 12, 20 mm Hose I.D. (size) -3, -8, -12 Hose Inside Diameter 3/16, 1/2, 3/4 inch Connection Thread Size 14x1.5, 24x1.5, 36x2, 52 x 2 mm Connection Type BSP, UNF, Metric, UNF-LH, LH , NPT, Acme , UNF - LH, UNF - 2B Length 3,1, 2,6, 3,2, 2,5, 3,4, 3,6, 3,8, 4,2, 9,1, 9,6, 9,8, 4,3, 5,6, 15,6, 10,9, 11,5, 15,9, 10,7, 6,4, 6,9, 5,5, 4 inch Maximum Operating Pressure 36250, 26100, 20300, 20000, 10000, 15000, 5000 psi Shape Straight
