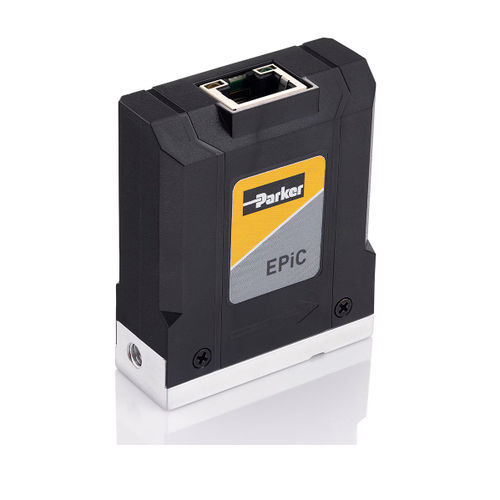

Flow pressure controller EPiC

gasdigitalprecision

Product overview
The EPiC miniature digital electronic pressure controller provides precise pressure-based flow control in compact installations. Available in two pressure ranges and two orifice sizes, it is designed for applications requiring accurate carrier-gas or air-over-liquid control and vacuum generation control.

Key applications

• Volumetric flow control
• Carrier gas pressure control
• Air-over-liquid flow control
• Vacuum generator control

Technical specifications

• Orifice size: 0.011 and 0.03 in (0.28 and 0.76 mm)
• Control method: digital electronic pressure control
• Flow control type: pressure
• Pressure control range: 0.15 to 30 PSIG; 0.75 to 150 PSIG
• Length: 2.25 in (57.15 mm)
• Height: 2.22 in (56.3 mm)
• Width: 0.7 in (17.8 mm)

Available configurations

• 942-030100-000 — Internal Vent — 0.15 to 30 PSIG
• 942-030100-001 — Internal Vent — 0.15 to 30 PSIG
• 942-030101-000 — No Internal Vent — 0.15 to 30 PSIG
• 942-030101-001 — No Internal Vent — 0.15 to 30 PSIG
• 942-030300-000 — Internal Vent — 0.15 to 30 PSIG
• 942-030300-001 — Internal Vent — 0.15 to 30 PSIG
• 942-030301-000 — No Internal Vent — 0.15 to 30 PSIG
• 942-030301-001 — No Internal Vent — 0.15 to 30 PSIG
• 942-150100-000 — Internal Vent — 0.75 to 150 PSIG
• 942-150100-001 — Internal Vent — 0.75 to 150 PSIG
• 942-150101-000 — No Internal Vent — 0.75 to 150 PSIG
• 942-150101-001 — No Internal Vent — 0.75 to 150 PSIG
• 942-150300-000 — Internal Vent — 0.75 to 150 PSIG
• 942-150300-001 — Internal Vent — 0.75 to 150 PSIG
• 942-150301-000 — No Internal Vent — 0.75 to 150 PSIG
• 942-150301-001 — No Internal Vent — 0.75 to 150 PSIG

Ordering information & notes

• Select orifice size and pressure range according to application flow and control resolution requirements
• Choose internal vent or no-internal-vent configuration based on system venting and exhaust routing
• Confirm electrical interface and mounting requirements with supplier before ordering
