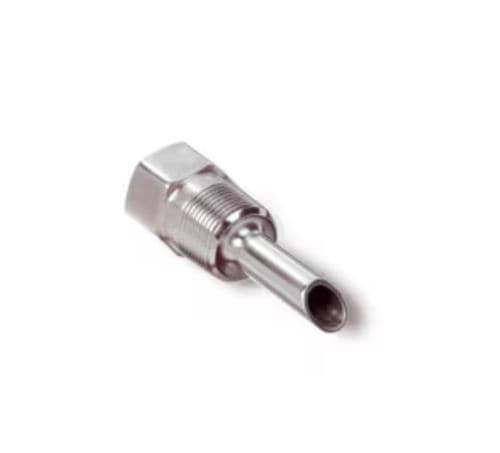

Sampling probe PR series

petrochemicalfor the gas industrychemical

Parker PGI’s Sample Probes are available in single flow, dual flow or hot tap options, all with 316 SS construction. Each Probe can be customized with numerous inlet and outlet configurations. Full Product Description Parker PGI’s Sample Probe Series are offered in 12 standard models, with hundreds of customizable configurations available. The Integral Sample Probes features PGI’s PTFE Pressure-Core® Stem Seal with 5 year warranty as standard. The Pressure-Core seal requires no bonnet adjustment and virtually eliminates leaks that would result in measurement drift and fugitive emissions. Markets: • Oil and Gas • Chemical • Petrochemical • Power Features/Benefits: • 8" 'cut to fit' probe length standard, longer lengths available • Standard probe valves have roddable acetal resin soft seats • .136” - .187” - .250” orifice sizes available • Inlet connections available from 1/2” – 3/4” - 1” MNPT • Consult factory for flanged inlet connections • Outlet connections available from 1/4” – 1/2” – 3/4” FNPT • Stabilizer nut included on several probe models Applications: • Pipeline Sampling Systems
