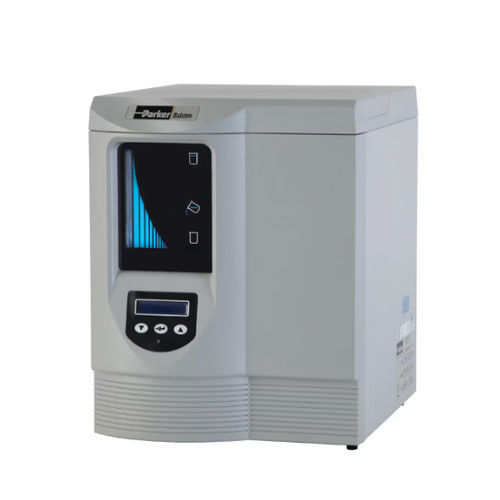

Ultra high-purity hydrogen generator H2PEMPD series

laboratoryfor gas chromatographyPEM

Short description
Ultra-high-purity hydrogen generators for analytical laboratories, delivering >99.99999% hydrogen with flow rates from 510 to 1300 ml/min and outlet pressures up to 175 psig.

Available models

• H2PEMPD-1300-100 — 1300 ml/min, Outlet Pressure Rating: 100 psig
• H2PEMPD-510-175 — 510 ml/min, Outlet Pressure Rating: 175 psig
• H2PEMPD-650-100 — 650 ml/min, Outlet Pressure Rating: 100 psig
• H2PEMPD-850-175 — 850 ml/min, Outlet Pressure Rating: 175 psig
• H2PEMPD-1100-175 — 1100 ml/min, Outlet Pressure Rating: 175 psig
• H2PEMPD-1300-175 — 1300 ml/min, Outlet Pressure Rating: 175 psig

Product overview
Hydrogen gas generators designed for GC and GC/MS fuel and carrier gas applications in analytical laboratories and life sciences. These units produce hydrogen at ultra-high purity (> 99.99999%) with flow control suitable for capillary and packed-column analysis. Compression-type outlet with a 1/4 inch port. Intended for use in ambient conditions between 10 and 35 °C (50–95 °F). Electrical supply: 100–230 VAC, 50/60 Hz.

Technical specifications

• Brand: Balston, Parker, Parker Balston
• Division: Industrial Gas Filtration and Generation Division
• Industry: Healthcare & Life Sciences
• Application: Analytical Laboratory
• Technology: Filtration
• Product Type: Hydrogen Gas Generator
• Flow Rate: 510 to 1300 cc/min
• Gas Type Generated: Hydrogen
• Gas Purity: > 99.99999 %
• Outlet Port Size: 1/4 inch
• Port Type: Compression
• Electrical Requirements: Yes
• Input Voltage: 100 to 230 VAC 50/60 Hz
• Current: < 5 A
• Ambient Temperature: 10 to 35 °C, 50 to 95 °F
• Inlet Pressure Rating: n/a
• Outlet Pressure Rating: 100 to 175 psig, 6.9 to 12 barg
• Specifications Met: CSA, CE
• Weight: 55 lb, 25 kg
• Height: 13.5 inch, 452 mm
• Width: 17.8 mm, 13.5 inch
• Depth: 533 mm, 21 inch
• Preventive Maintenance Kit: 6 Months: MKH2PEMPD-EU-6M, 24 Months: MKH2PEMPD-EU-24M
• Water Quality: > 5 MΩ
