Inert nitrogen generator HIFLUXX
high-puritylaboratoryindustrial

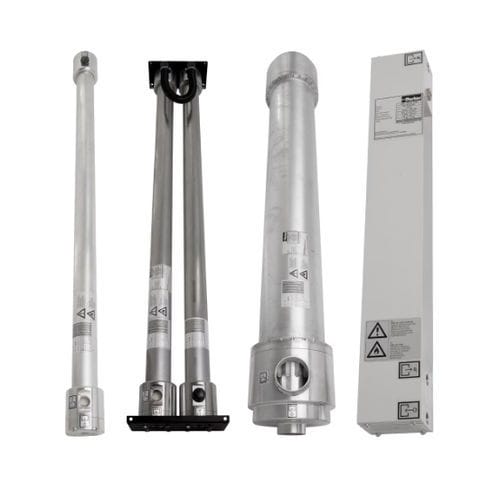

Inert nitrogen generator - HIFLUXX - Parker Refrigerating Specialties Division - high-purity / laboratory / industrial

Add to favorites

Compare this product

Characteristics

Gas characteristics

high-purity, inert

Domain

laboratory, industrial

Applications

for heat treatment furnaces

Technology

membrane

Configuration

on site

Other characteristics

high-flow, high-pressure

Flow rate

Min.: 0.7 m³/h
(24.72 ft³/h)

Max.: 121 m³/h
(4,273.075 ft³/h)

Output pressure

Min.: 0 Pa
(0 psi)

Max.: 1,300,000 Pa
(188.55 psi)

Gas purity

Min.: 95 %

Max.: 99.5 %

Description

Short description
Membrane modules for on-site generation of nitrogen from compressed air. HiFluxx HIFLUXX modules deliver equivalent nitrogen purity from 95% up to 99.5% (oxygen content 0.5–5%). Designed for industrial applications with a range of flow rates and inlet pressures.

Overview

Membrane gas separation technology to separate nitrogen from compressed air.
Operates from standard compressed air supplies at pressures up to 13 barg.
Equivalent nitrogen purity range: 95%–99.5% (oxygen content options 0.5–5% and 1–5%).
Series flow rates: 0.7 to 121 m3/hour (example values measured at 7 barg / 97% purity).

Technical Specifications (summary)

Brand: Parker
Product series: HIFLUXX
Technology: Membrane gas separation / Filtration
Gas produced: Nitrogen
Purity (equivalent): typically 95% to 99.5%
Flow rate (series): 0.7 to 121 m3/hour @ 7 barg (model dependent)
Oxygen content options: 0.5 to 5 % and 1 to 5 %
Port type: Female BSPP
Electrical requirements: None
Maximum air inlet temperature: 50 °C / 122 °F
Inlet air quality: ISO 8573-1:2010 Class 1.4.1
Number of tubes: 1 to 3
Many mechanical details (port sizes, housing material, dimensions, weight, inlet pressure rating) are specified per part number — see part number details.

Product variants (selection)

159.003265 | HiFluxx ST606 | 1–5% O2 | 3.15 m3/h @ 7 barg / 97% Purity
159.003476 | HiFluxx TT606 | 0.5–5% O2 | 10.1 m3/h @ 7 barg / 97% Purity
159.003420 | HiFluxx ST304 | 1–5% O2 | 0.7 m3/h @ 7 barg / 97% Purity
159.003115 | HiFluxx DT1508SS | 0.5–5% O2 | 26.0 m3/h @ 7 barg / 97% Purity
159.003234 | HiFluxx DT1508 (9–13 barg) | 0.5–5% O2 | 46.8 m3/h @ 11 barg / 97% Purity
159.003114 | HiFluxx DT1508 (4–8 barg) | 0.5–5% O2 | 26.0 m3/h @ 7 barg / 97% Purity
159.003229 | HiFluxx ST1508SS | 0.5–5% O2 | 15.0 m3/h @ 7 barg / 97% Purity
159.003102 | HiFluxx ST1508 | 0.5–5% O2 | 15.0 m3/h @ 7 barg / 97% Purity
159.003233 | HiFluxx DT1506-8 (9–13 barg) | 0.5–5% O2 | 35.1 m3/h @ 11 barg / 97% Purity
159.003126 | HiFluxx ST1506 | 0.5–5% O2 | 7.2 m3/h @ 7 barg / 97% Purity
159.003470 | HiFluxx ST6010 | 1–5% O2 | 9.4 m3/h @ 7 barg / 97% Purity
159.003309 | HiFluxx ST608 | 1–5% O2 | 5.8 m3/h @ 7 barg / 97% Purity
159.003475 | HiFluxx TT604 | 0.5–5% O2 | 5.6 m3/h @ 7 barg / 97% Purity
159.003472 | HiFluxx DT604 | 0.5–5% O2 | 3.9 m3/h @ 7 barg / 97% Purity
159.003468 | HiFluxx ST604 | 1–5% O2 | 1.7 m3/h @ 7 barg / 97% Purity
159.005534 | HiFluxx ST504 | 1–5% O2 | 1 m3/h @ 7 barg / 97% Purity
159.003474 | HiFluxx TT304 | 0.5–5% O2 | 2.8 m3/h @ 7 barg / 97% Purity
159.003471 | HiFluxx DT304 | 0.5–5% O2 | 1.9 m3/h @ 7 barg / 97% Purity
159.003846 | HiFluxx ST15020-1 | 1–5% O2 | 121 m3/h @ 7 barg / 97% Purity
159.003226 | HiFluxx DT1506-8 (4–8 barg) | 0.5–5% O2 | 19.5 m3/h @ 7 barg / 97% Purity

Applications and buyer information

Suitable for industrial gas supply, heat treatment, aviation support, oil & gas and laboratory purge where controlled nitrogen purity and flow are required.
Select model based on required flow rate, target oxygen content and available compressed air pressure.
Consult Parker part number details for port sizes, dimensions and installation data.
