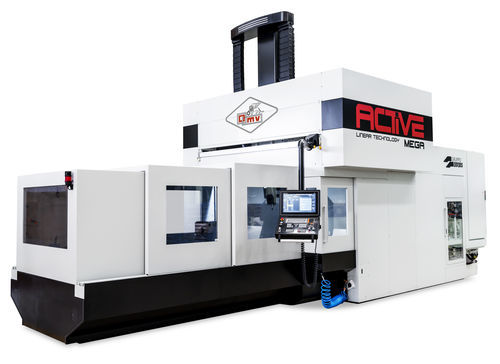

5-axis machining center ACTIVE MEGAuniversalfor steelfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Machined material
- for steel, for aluminum, for aluminum alloys, for titanium alloys, for light alloys, for stainless steel, for composites
- Structure
- with fixed portal, with moving table
- Spindle mount
- HSK-63-A, ISO 40, HSK-100-A
- Associated functions
- milling
- Applications
- for aluminum profiles, for large workpieces, for the automobile industry, for molds, for the aerospace industry, for aeronautics, for the mold industry, for the aluminum industry, for the aeronautical industry, for titanium
- Other characteristics
- high-speed, high-performance, high-productivity, high feed rate, high-precision, high-rigidity, with linear motor, with automated loading, with automatic tool changer
- X travel
Min.: 2,200 mm
(86.61 in)Max.: 4,200 mm
(165.35 in)- Y travel
2,050 mm
(80.71 in)- Z travel
1,100 mm
(43.31 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 22,000 rpm
(138,230 rad.min-1)- Power
Min.: 0 kW
(0 hp)Max.: 47 kW
(63.9 hp)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Work feed Z-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)
Description
Fixed portal and moving table machining centre with linear motors for high-dynamic machining on large parts
ACTIVE MEGA is the bigger and most performing model of ACTIVE line. It is designed to ensure high-accuracy, high-dynamic and high loading capacity for big components. Studied to meet the most complex needs in loading capacity, accuracy and automation, it is equipped with linear motors for smooth and fast movements with no mechanical wear.
Built for 3 or 5-axis high-speed machining, ACTIVE MEGA stands out for its balance between dynamic and geometrical stability. It is the perfect solution for sectors like aerospace, power generation, mould & dies and general engineering. Thanks to its configuration, it is easy to integrate it in automated lines or FMS always ensuring efficiency also during unmanned operations.
ACTIVE MEGA is the bigger and most performing model of ACTIVE line. It is designed to ensure high-accuracy, high-dynamic and high loading capacity for big components. Studied to meet the most complex needs in loading capacity, accuracy and automation, it is equipped with linear motors for smooth and fast movements with no mechanical wear.
Built for 3 or 5-axis high-speed machining, ACTIVE MEGA stands out for its balance between dynamic and geometrical stability. It is the perfect solution for sectors like aerospace, power generation, mould & dies and general engineering. Thanks to its configuration, it is easy to integrate it in automated lines or FMS always ensuring efficiency also during unmanned operations.
Other Parpas products
Fixed portal and moving table machining centres
