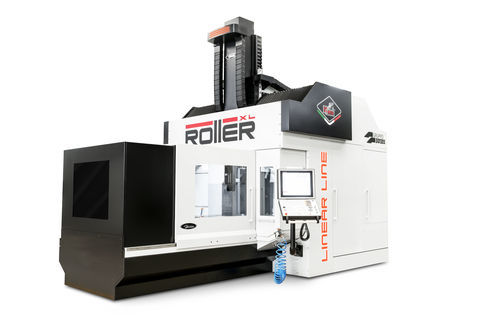

5-axis machining center ROLLER XL6-axisuniversalfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis, 6-axis
- Spindle orientation
- universal
- Machined material
- for steel, for aluminum, for aluminum alloys, for titanium alloys, for light alloys, for stainless steel, for composites
- Structure
- with fixed portal, with rotary-translating table
- Spindle mount
- HSK-63-A
- Associated functions
- milling, drilling, turning, grinding
- Applications
- for large workpieces, for the automobile industry, for aluminum profiles, for molds, for the aerospace industry, for aeronautics, for the mold industry, for the aluminum industry, for the aeronautical industry, for titanium, for generator rotors, for the steel industry, deep hole, for gas turbines
- Other characteristics
- high-speed, high-performance, conveyor belt, high-productivity, high feed rate, compact, high-precision, with tool changer, high-rigidity, high-power, with linear motor, with automated loading, with pallet changer
- X travel
2,050 mm
(80.71 in)- Y travel
2,030 mm
(79.92 in)- Z travel
1,000 mm
(39.37 in)- Rotational speed
Max.: 22,000 rpm
(138,230 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 47 kW
(63.9 hp)Min.: 0 kW
(0 hp)- Work feed X-axis
Max.: 60,000 mm/min
(39.37 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 60,000 mm/min
(39.37 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 60,000 mm/min
(39.37 in/s)Min.: 0 mm/min
(0 in/s)
Description
5-axis fixed portal and rotary table machining centre also with linear motors
ROLLER XL is the 5-axis fixed portal and moving rotay table designed to ensure high-dynamic, structural rigidity and maximum flexibility, allowing deep drilling operations. The FULL LINEAR version is equipped with linear motors on all axes, for high-speed movements and constant accuracy also during unmanned operations.
The configuration with rotary table (also for turning) allows 5-axis machining on complex parts with high-accuracy and structural stability. ROLLER XL is suitable for pallet systems and FMS integration making it perfect for automated production in aerospace, power generation, general engineering and mould & die sectors.
ROLLER XL is the 5-axis fixed portal and moving rotay table designed to ensure high-dynamic, structural rigidity and maximum flexibility, allowing deep drilling operations. The FULL LINEAR version is equipped with linear motors on all axes, for high-speed movements and constant accuracy also during unmanned operations.
The configuration with rotary table (also for turning) allows 5-axis machining on complex parts with high-accuracy and structural stability. ROLLER XL is suitable for pallet systems and FMS integration making it perfect for automated production in aerospace, power generation, general engineering and mould & die sectors.
