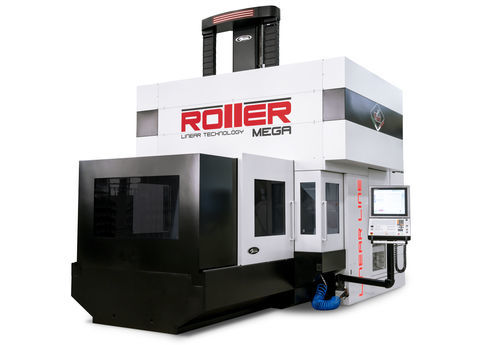

5-axis machining center ROLLER MEGA6-axisuniversalfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis, 6-axis
- Spindle orientation
- universal
- Machined material
- for steel, for aluminum, for aluminum alloys, for titanium alloys, for light alloys, for stainless steel, for composites
- Structure
- with fixed portal, with rotary-translating table
- Associated functions
- milling, drilling, turning, grinding
- Applications
- for aeronautics, for aluminum profiles, for large workpieces, for the automobile industry, for molds, for the aerospace industry, for the mold industry, for gas turbines, for the aluminum industry, for the aeronautical industry, for titanium, for generator rotors
- Other characteristics
- high-speed, high-performance, high-productivity, high feed rate, high-rigidity, high-power, with linear motor, with automated loading, with automatic tool changer, with integrated pallet changer
- X travel
2,050 mm
(80.71 in)- Y travel
2,050 mm
(80.71 in)- Z travel
1,100 mm
(43.31 in)- Rotational speed
Max.: 22,000 rpm
(138,230 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 47 kW
(63.9 hp)Min.: 0 kW
(0 hp)- Work feed X-axis
Max.: 60,000 mm/min
(39.37 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 60,000 mm/min
(39.37 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 60,000 mm/min
(39.37 in/s)Min.: 0 mm/min
(0 in/s)
Description
High-speed fixed portal and rotary table machining centre with linear motors
ROLLER MEGA is the flagship model of ROLLER line, as well as the bigger and most advanced fixed portal and moving rotary table machining centre of the range. Designed to meet the most complex needs in loading capacity, accuracy and automation. It is equipped with linear motors to ensure maximum dynamic and repeatability.
The configuration with rotary mill/turn table allows 5-axis machining, making ROLLER MEGA perfect for big, symmetric or complex components that are mainly machined in aerospace, power generation, mould & dies and general engineering sectors.
Maximum rigidity, high performances also unmanned, ready for automation and wide working area. This makes ROLLER MEGA a strategic choice for who want the best in terms of flexibility and reliability.
ROLLER MEGA is the flagship model of ROLLER line, as well as the bigger and most advanced fixed portal and moving rotary table machining centre of the range. Designed to meet the most complex needs in loading capacity, accuracy and automation. It is equipped with linear motors to ensure maximum dynamic and repeatability.
The configuration with rotary mill/turn table allows 5-axis machining, making ROLLER MEGA perfect for big, symmetric or complex components that are mainly machined in aerospace, power generation, mould & dies and general engineering sectors.
Maximum rigidity, high performances also unmanned, ready for automation and wide working area. This makes ROLLER MEGA a strategic choice for who want the best in terms of flexibility and reliability.
