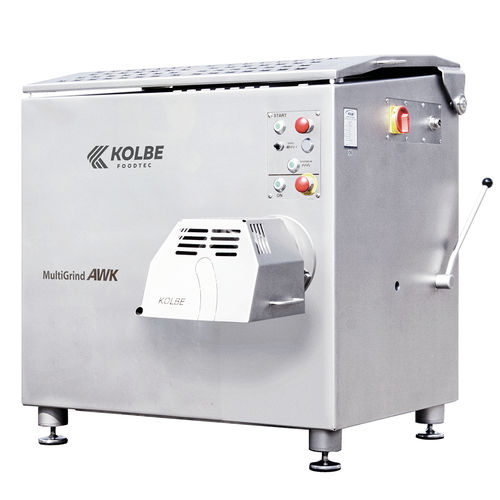

Meat mixer mincer AWK130-160

automatic

Despite its compact size, the AWK delivers high performance. The automatic crossfeed grinder is highly suitable for the processing of big meat parts, fresh and frozen up to −10°C. The AWK MultiGrind grinder can be equipped with either the cutting system Unger E130 or the Enterprise E52 and has an hourly output of about 2500 kg. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Unger E130 Perforated plate-Ø 130 mm Hopper volume 160 Ltr. External dimensions (W x D x H) 1386 x 1497 x 1383 mm Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 15 (22) kW Motor feeding drive / Protection system IP55 1,5 kW Nominal current at 400 V – Main drive 28,5 (40,5) A Nominal current at 400 V – Feeding drive 3,1 A Conductor size 10 (16) mm² Fusing at 400 V (A lazy) 40 (50) A Input height 1234 mm Lower housing height (with cover) 512 mm Noise level 70,8 db (A) Weight (net.) ~755 – 815 kg Stainless steel machine / outlet protection cover / stainless lock nut / push-button-control / worm ejection / socket wrench SW 24 / combi hook wrench / I-speed version / 4 height adjustable stainless steel anti vibration metal-feet / feeding worm prefilling function / cable for main connection Precutter retain unit / increased motor capacity 22kW / variable speed (stepless) of working worm 15kW or 22kW / hoist feed loader FD 120 / hoist feed loader FD 200 / tool trolley for equipment and tools / hopper extension with safety frame / KOLBE dynamic separating system KDS130
