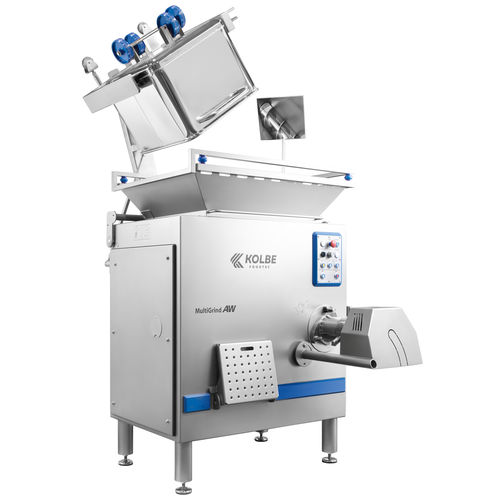

Meat mixer mincer AW160-240

automatic

The automatic crossfeed grinders with their strong drives meet the highest demands on processing and hourly output. They are very suitable for the processing of big meat parts, fresh and frozen up to −16°C. The MultiGrind grinders can be equipped with the Enterprise cutting system in sizes E52 or E56 or the Unger cutting system in sizes 130 or 160. With the Unger G160 cutting system the AW160–240 is able to perform an hourly output of up to 4000 kg with a volume of approx. 240 kg. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Unger G160 Perforated plate-Ø 160 mm Total hopper volume ~360 Ltr. External dimensions (W x D x H) 1478 x 1496 x 1975 mm Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 30 (22) kW Motor feeding drive / Protection system IP55 1,5 kW Motor loosening device drive / protection system IP55 1,5 kW Nominal current at 400 V – Main drive 54 (40,5) A Nominal current at 400 V – Feeding drive 3,1 A Nominal current at 400 V Mixing and loosening device drive (opt.) 3,1 A Conductor size 25 (16) mm² Fusing at 400 V (A lazy) 63 (50) A Input height 1978 mm Lower housing height (with cover) 733 mm Noise level 68,8 db (A) Weight (net.) ~1000 – 1100 kg Stainless steel machine / feeding hopper with safety frame / outlet protection cover / stainless lock nut / push-button-control / hydraulic worm ejection / socket wrench SW 24 / combi hook spanner / I-speed version / 4 height adjustable anti vibration metal-feet / feeding worm prefilling function / cable for main connection
