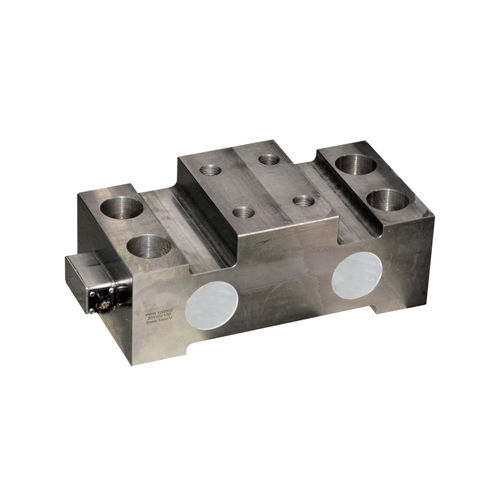

Double-ended shear beam load cell PRR HT

beam typestrain gaugestainless steel

The PRR HT product, built in stainless steel, is a load cell for high temperatures. It is equipped with watertight protection for use in severe environmental conditions and can be customized on request. It has a low profile and it is suitable for hostile environments. The PRR HT cell has excellent linearity and precision characteristics, it is insensitive to side loads and withstands overloads of up to 500%. The PRR HT load cell is widely used in the iron and steel sector. Technical Specifications Rated load RL: 50, 100 t Combined error: ±0.15 % RO Repeatability: ±0.02 % RO Creep (20 minutes): ±0.03 % RL Safe overload: 200 % RL Ultimate overload: 500 % DN Ultimate sideload: 100 % RL Material: Stainless steel AISI 17-4PH Degree of protection: IP66 Deflection: 0.35 mm Compensated Temperature: -10 ÷ +120 °C Temperature range: -20 ÷ +150 °C Temperature effect on zero balance: < ±0.005 % RO/°C Temperature effect on output: < ±0.005 % on output/°C Rated output RO: 1.0 mV/V ±0.1 % Zero balance: 5000 MOhm Input resistance: 350 ±20 Ohm Output resistance: 350 ±5 Ohm Recommended input: 2 ÷ 15 V
