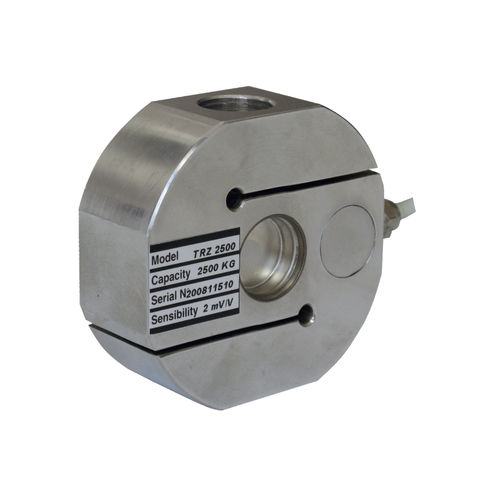

Tension/compression load cell TRZ HT

S-beamstrain gaugeweighing

The TRZ HT load cell, built in stainless steel, has been designed for the industrial weighing of small tanks and hoppers and it is ideal for working in harsh environments and at high temperatures. It has excellent characteristics of linearity and precision and it owns watertight protection for use in severe environmental conditions and overload resistance over 300%. Technical Specifications Rated load RL: 100, 250, 500, 750, 1000, 2500, 5000, 7500, 10000 Kg Combined error: ±0.05 % RO Repeatability: ±0.02 % RO Creep (20 minutes): ±0.03 % RO Safe overload: 150 % RL Ultimate overload: > 300 % RL Material: Stainless steel AISI 17-4PH Degree of protection: IP67 Deflection: 0.3 mm Compensated Temperature: -10 ÷ +50°C Temperature range: -20 ÷ +150°C Temperature effect on zero balance: ±0.005 % RO/°C Temperature effect on output: ±0.005 % on output/°C Rated output RO: 2.0 mV/V ±0.1 % Insulation resistance: > 5000 MOhm Input resistance: 350 ±20 Ohm Output resistance: 350 ±5 Ohm Recommended input: 2 ÷ 15 Vdc/ac
