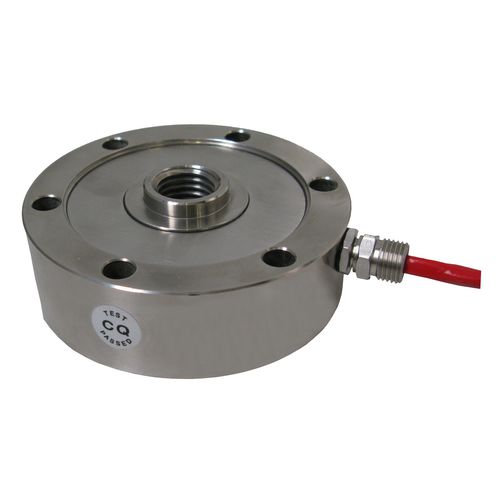

Compression load cell GD-4

stainless steelIP65through-hole

The GD 4 Compression Load Cell has been designed for working in harsh environments. The GD 4 cell is a tailor-made product, designed and built according to the specific needs of the customer. Technical Specifications Rated load RL: 500, 1.000, 2.500, 5.000, 10.000, 20.000 kg Combined error: ±0,05 % RO Repeatability: ±0.03 % RO Creep (30 minutes): ±0.03 % RO Safe overload: 150 % RL Ultimate overload: 300 % RL Material: Stainless steel Degree of protection: IP65 Compensated Temperature: -10 ÷ +40 °C Temperature range: -20 ÷ +70°C Temperature effect on zero balance: ±0.003 % RO/°C Temperature effect on output: ±0.002 % output/°C Rated output RO: 2 mV/V ±0.1% Zero balance: ±1 % RO Insulation resistance: > 2000 MOhm Input resistance: 700 ÷ 710 Ohm Output resistance: 700 ÷ 705 Ohm Recommended input: 5 ÷ 15 Vdc/ac Cable Lenght: 5, 10, 20 m
