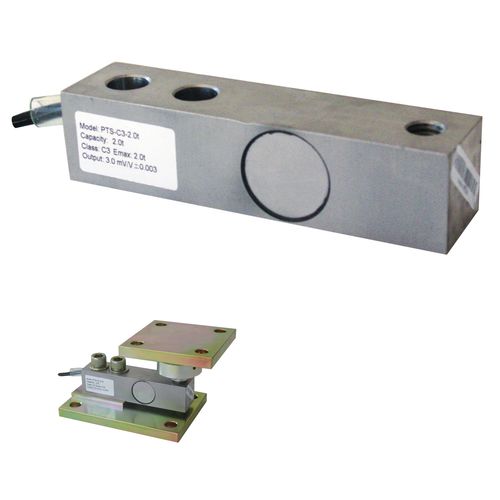

Shear beam load cell PTS

beam typefor hopperweighing

The PTS shear beam load cell, made of stainless steel, has excellent precision and linearity and it is resistant to lateral loads exceeding 50% of the rated load (RL). The PTS cell has been designed for weighing tanks, hoppers, belts, platforms, single-cell systems, suspended loads and automatic packaging machines and is usually used in the food, chemical, pharmaceutical, plastic and metallurgical sectors. The PTS shear beam load cell has a 6-meter shielded 4-conductor cable. Technical Specifications Rated load RL: 0.5, 1, 2, 5 t Combined error: ±0.023 % RO Repeatability: ±0.01 % RO Creep (30 minutes): ±0.02 % RO Safe overload: 150 % RL Ultimate overload: 300 % RL Clamping force without any load: M12= 75Nm; M18= 500Nm Material: Stainless steel Degree of protection: IP67 Accuracy class: 3000 OIML Deflection: 0.2 ÷ 1.4 mm Compensated Temperature: -10 ÷ +40°C Temperature range: -35 ÷ +65°C Temperature effect on zero balance: ±0.018 % RO/10°C Temperature effect on output: ±0.014 % on output/10°C Rated output RO: 3 mV/V ± 0.008 Zero balance: ±1 % RO Insulation resistance: > 5000 MOhm Input resistance: 350 ±3.5 Ohm Output resistance: 350 ±3.5 Ohm Recommended input: 5 ÷ 12 Vdc/ca
