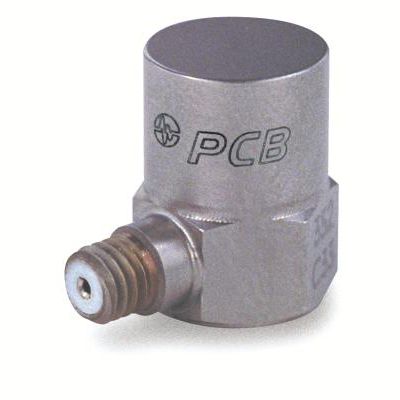

ICP accelerometer TLD352C33shearwith TEDShigh-sensitivity
Add to favorites
Compare this product
Characteristics
- Technology
- shear, ICP
- Other characteristics
- high-sensitivity, with TEDS
- Acceleration range
Min.: -490 m/s²
(-1,608 ft/s²)Max.: 490 m/s²
(1,608 ft/s²)- Frequency
Min.: 0.5 Hz
Max.: 10,000 Hz
Description
Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Broadband Resolution: 0.00015 g rms (0.0015 m/s² rms)
Sensing Element: Ceramic
Weight: 0.20 oz (5.8 gm)
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[2] Typical.
[4] 200°F to 325°F data valid with HT option only.
[2] Typical.
[5] TEDS option adds 1.0 VDC to bias voltage.
[2] Typical.
