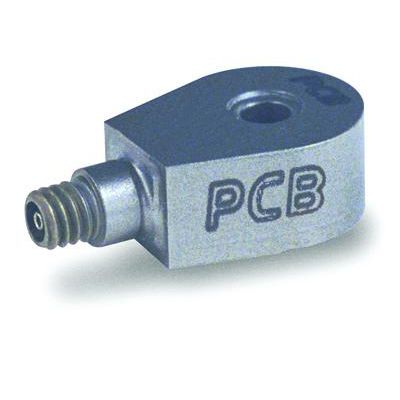

Piezoelectric accelerometer 357B06miniature
Add to favorites
Compare this product
Characteristics
- Technology
- piezoelectric
- Other characteristics
- miniature
- Acceleration range
Min.: -4,905 m/s²
(-16,093 ft/s²)Max.: 4,905 m/s²
(16,093 ft/s²)- Frequency
10 kHz
Description
Sensitivity: (±20%)5 pC/g (0.51 pC/(m/s²))
Weight: 0.08 oz (2.3 gm)
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Transverse sensitivity is typically ≤ 3%.
[3] Low frequency response is determined by external signal conditioning electronics.
[4] When used with off ground washer, high frequency specification is typically 2 kHz less on 10% and 3 dB points.
[5] Typical.
[6] Only when using off ground washer.
[4] When used with off ground washer, high frequency specification is typically 2 kHz less on 10% and 3 dB points.
[5] Typical.
