Acoustic leak detector PCE-LDC 8

laserultrasonicgas

Description

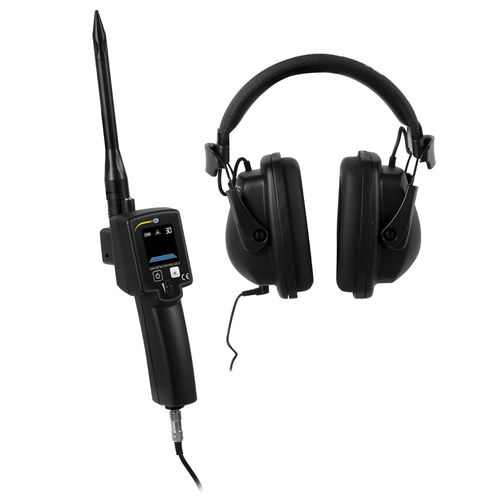

The PCE-LDC 8 ultrasonic gas leak detector locates leaks on compressed air systems, coolant lines and non-explosive gas pipelines. It uses an ultrasonic sensor centered at 40 kHz (operating range 20–80 kHz) with an integrated high-pass filter to suppress noises below ~40 kHz. An internal amplifier makes high-frequency leak tones audible via supplied headphones and the device also indicates signal intensity on an LCD. The sensor includes a laser pointer for targeting; an extension lance can be fitted for pinpoint detection. Depending on pipeline pressure, leaks can be detected from distances up to 18 m. The unit is powered by a rechargeable NiMH battery and is supplied in a robust carrying case with accessories.

Highlights

• Operating frequency: 40 kHz
• Acoustic detection via headphones and visual indication on LCD
• Rechargeable NiMH battery — up to approx. 6 h (without laser)
• Integrated high-pass filter to reduce background noise
• Laser pointer and adaptorable focus tube for precise targeting
• Detection possible at long distances depending on pressure (up to 18 m)

Delivery scope

• 1 x Gas Leak Detector PCE-LDC 8
• 1 x Sensor unit
• 1 x Headphones
• 1 x Focus tube with tip
• 1 x Sensor extension cable
• 1 x Charger
• 1 x Carrying case
• 1 x Instruction manual

Technical specifications

• Measuring principle: Ultrasonic
• Measuring media: Air, coolant, non-explosive gases
• Operating frequency: 40 kHz ± 2 kHz (range 20…80 kHz)
• Connections: 3.5 mm jack for sensor; 3.5 mm jack for headphones and charger
• Display: LCD (signal intensity)
• Power supply: NiMH rechargeable battery
• Operating time: approx. 6 h (without laser) / approx. 4 h (with laser)
• Charging time: approx. 1.5 h
• Operating temperature: normal use 0 … +40 °C; charging 10 … +40 °C
• Laser: Class 2; <1 mW; 650 nm
• Dimensions: 191.5 x 87.5 x 53 mm
• Weight: approx. 250 g
• Detection examples (pressure vs. leak diameter / range):
  0.5 bar — 0.1 mm — 2 m; 0.5 bar — 0.2 mm — 2 m; 0.5 bar — 0.5 mm — 10 m;
  5 bar — 0.1 mm — 8 m; 5 bar — 0.2 mm — 14 m; 5 bar — 0.5 mm — 18 m
