Digital humidity meter PCE-DPM 3

portabletemperaturedew-point

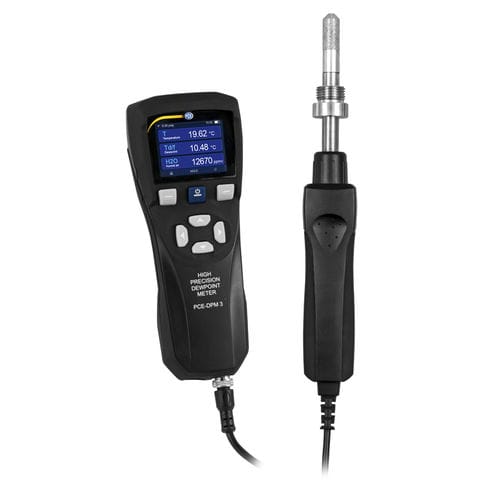

Humidity detector PCE-DPM 3 Sintered cap to protect against moisture and dust / Data can be read out via any computer / Data memory for approx. 50,000 measurement data / CSV format / Battery can be recharged via micro-USB / Easy operation The humidity detector is a mobile testing device for monitoring the quality of compressed air on stationary and mobile compressed air generators. This humidity detector measures the temperature, the relative humidity, H2O and calculates the current dew point up to an ambient pressure of 20 bar. Thanks to the sintered cap, the humidity detector in the pressure lines is protected from dirt, moisture and high flow speeds. This increases the service life of the humidity detector's sensors. The data memory of the humidity detector enables the course of the measurement parameters to be recorded in a pressure line. The data recorded by the humidity detector is permanently stored in the internal memory. The memory can be read out directly on the humidity detector. The humidity detector can also be connected to an operating system independent computer via the micro USB interface. This is made possible because the humidity detector is recognized as a mass data storage device. The data saved by the pressure dew point measuring device are saved in CSV format. The stored measurement data can thus be evaluated using any spreadsheet program. - Data storage with CSV data export - Dew point, H2O, temperature, humidity measurement - For inline measurement of pressure pipes - Battery operation for mobile use - With G1 / 2 "connection thread - Sensors protected with sintered filters
