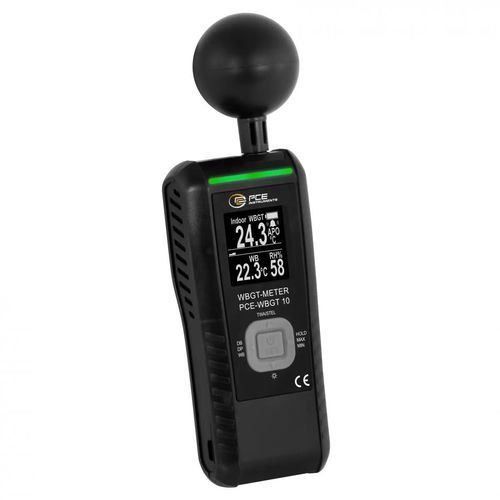

Digital hygrometer PCE-WBGT 10

industrialcompactportable

Product Description
The Hygrometer is used to assess heat stress in working environments, sports facilities or industrial plants. It is used both indoors and outdoors to precisely measure climatic conditions and ensure the safety of people exposed to heat.

The measuring range of the device covers a large number of climate-relevant variables: The WBGT value can be recorded from 0 ... 50°C / 32 ... 122°F, the sphere temperature (TG) ranges from -20 ... 125°C / -4 ... 257°F, as does the air temperature (AIR). The dew point (DP) is measured between -20...60°C / -4 ... 140°F, the wet bulb temperature (WB) covers the same range. The device also records the relative humidity (RH%) in the range from 0 to 100%.

The Hygrometer offers a range of practical functions that make everyday use particularly easy. In addition to the display of MIN, MAX, HOLD and AVG, it is possible to switch between indoor and outdoor mode. The integrated data logger with 8 MB memory records up to around 260,000 measured values, which can be easily transferred to a PC via USB-C. Suitable software is available for reading out and analyzing the data, with which measurement series can be clearly displayed and saved. The storage interval can be flexibly set from 0 seconds to 10 minutes.

An acoustic, adjustable WBGT alarm provides additional safety, while the real-time display, automatic switch-off and customizable standby mode ensure convenient operation. With switchable units between °C and °F, an easy-to-read 1.8-inch LCD display, USB-C charging function, compact design and a 46 mm diameter sensor ball, this device is handy, versatile and easy to use.

A Hygrometer of this type is indispensable for health and safety officers, safety engineers, sports coaches or event organizers who need to monitor heat stress. It provides reliable data for recognizing risks and taking preventative measures. Thanks to its versatility, the Hygrometer is suitable for professional use as well as for research and training purposes.

Highlights

• Measuring functions: MIN, MAX, HOLD, AVG
• Indoor or outdoor mode - selectable
• Data logger 8 MB
• WBGT alarm: adjustable, acoustic
• Real-time display
• Automatic switch-off
• Adjustable standby mode
• Convertible units °C and °F
• 1.8 inch LCD display
• Rechargeable via USB-C cable

Specification
Relative humidity
Measurement range up to 0 ... 20 %
Resolution 1 %
Accuracy ±5% @ 25°C

Relative humidity
Measurement range up to 20 ... 80 %
Resolution 1 %
Accuracy ±3 %

Relative humidity
Measurement range up to 80 ... 100 %
Resolution 1 %
Accuracy ±5% @ 25°C

Wet bulb temperature
Measurement range up to -20 ... 0 °C
Resolution 0.1 °C
Accuracy ±3 °C

Wet bulb temperature
Measurement range up to 0 ... 50 °C
Resolution 0.1 °C
Accuracy ±1.5 °C

Wet bulb temperature
Measurement range up to 50 ... 60 °C
Resolution 0.1 °C
Accuracy ±3 °C

WBGT
Measurement range up to 0 ... 50 °C
Resolution 0.1 °C
Accuracy ±0.3°C

Dew point
Measurement range up to -20 ... 0 °C
Resolution 0.1 °C
Accuracy ±3°C

Dew point
Measurement range up to 0 ... 50 °C
Resolution 0.1 °C
Accuracy ±1.5°C

Dew point
Measurement range up to 50 ... 60 °C
Resolution 0.1 °C
Accuracy ±3°C

Temperature
Measurement range up to -20 ... 0 °C
Resolution 0.1 °C
Accuracy ±1 °C

Temperature
Measurement range up to 0 ... 60 °C
Resolution 0.1 °C
Accuracy ±0.3 °C

Temperature
Measurement range up to 60 ... 125 °C
Resolution 0.1 °C
Accuracy ±1 °C

General technical data
Measuring functions MIN, MAX, HOLD, AVG
Units °C, °F
Display type LCD with backlight
Display size 1.8 Inch
Storage medium Internal memory
Storage capacity 8 MB
Memory capacity (additional information) 8 MB EEPROM for approx. 260,000 measured values, transferable to PC via USB-C only.
Storage interval from 0 s
Storage interval to 10 min.
Interface USB-C
Warm-up time 30 s
Operating time 72 h
Automatic power-off from...to 15 ... 360 min.
Automatic power-off can be deactivated Yes
Alarm Acoustic
Dimensions Sensor ball: Ø 46 mm
Alarm settings 0 ... 9999 °C
Menu language English, English (GB)
Power supply 5 V
(Rechargeable) battery 1 x 3.7 V internal, Lithium-ion battery
Capacity 2000 mAh
Operating conditions 0 ... 50 °C, 0 ... 95 % RH
Storage conditions -20 ... 60 °C, 0 ... 99 % RH
Dimensions (L x W x H) 200 x 62 x 38 mm
Weight 187 g

Delivery Scope

• 1 x Hygrometer PCE-WBGT 10
• 1 x Operating manual
• 1 x USB-C cable
• 1 x Software (available in the download area)

Technical Features / Specifications

• Measuring functions: MIN, MAX, HOLD, AVG
• Indoor/outdoor selectable
• Data logger: 8 MB, approx. 260,000 values
• WBGT alarm: adjustable, acoustic
• Real-time display
• Automatic switch-off and standby
• Units: °C/°F
• 1.8" LCD display
• USB-C rechargeable
• Sensor ball: Ø 46 mm
• Operating time: 72 h
• Battery: 3.7 V, 2000 mAh Li-ion
• Dimensions: 200 x 62 x 38 mm
• Weight: 187 g
