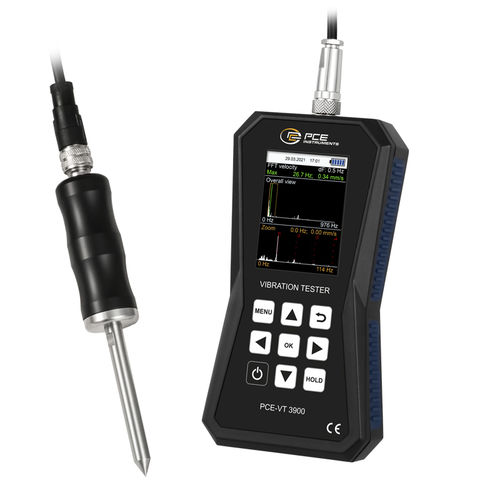

Machine monitoring vibration meter PCE-VT 3900S

for balancingportablewith data logger

Vibration meter with internal memory / Route measurement / Rechargeable battery / Software for evaluating the stored data / Measuring range up to 399.9 m/s² / PC interface / Optionally with ISO calibration certificate The vibration meter is an ideal measuring device for fast and precise checking of vibrating parts, machines and systems. This vibration meter uses the external vibration sensor to determine the vibration displacement (measuring range 0.000 ... 3.9 mm), the vibration velocity (measuring range 0.00 ... 399.9 mm/s) and the vibration acceleration (measuring range 0.0 ... 399.9 m/s²). Various measurement parameters are available for the vibration meter, such as RMS, peak, peak-peak and crest factor. The vibration meter is equipped with a mode that allows a measurement to be automatically evaluated according to the limit values ​​of ISO 10816-3. The vibration meter analyzes the measured values ​​and shows a corresponding good/bad rating on the display. The built-in battery in the vibration measuring device has a capacity of 2500 mAh and can be recharged directly via the built-in micro-USB interface. In addition to the normal measuring mode, the vibration meter has an FFT mode. In the FFT mode, the frequency spectrum for the measured vibration speed or vibration acceleration is calculated and displayed. - For mobile vibration measurement - Measuring range up to 399.9 m/s² / 15744 in/s² - FFT analysis - Route measurement - Manual measured value memory - Automatic ISO 10816-3 evaluation - Internal memory - 2.48" LC display - Rechargeable battery - Micro-USB interface
