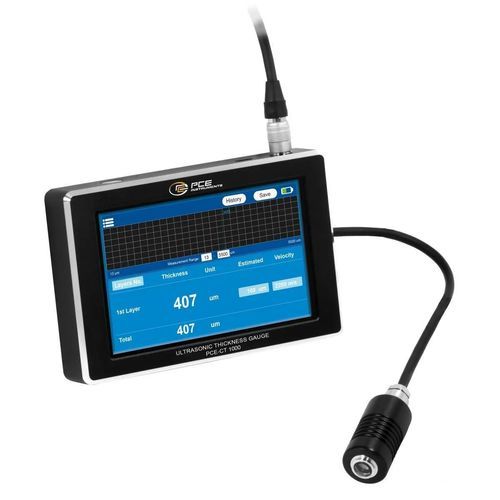

Ultrasonic thickness gauge PCE-CT 1000

coatingportableplastic

Product Details
The Thickness Meter works according to the pulse-reflection principle of ultrasonic measurement and delivers precise results for a wide range of materials. It is ideal for measuring coating thicknesses on non-metallic substrates, such as plastic parts, wood or glass, as well as for determining the thickness of metallic base materials and coatings.

Thanks to its multi-layer measurement function, the Thickness Meter enables the precise analysis of complex material structures and multi-layer systems. The brilliant IPS color display ensures a razor-sharp display of all measured values, parameters and waveforms. The integrated waveform display allows precise control of the signal quality and thus contributes to the high measurement accuracy.

The sonic velocity can be individually adjusted to achieve optimum results for different materials. In addition, the Thickness Meter has 21 preset materials that are ready for immediate use. Thanks to the continuous measurement function, larger areas can also be checked quickly and efficiently.

Another advantage of the Thickness Meter is the internal memory for up to 999 data records, which can be used to easily document and later analyze measurement results. The stored data can be displayed directly on the device and, if required, conveniently read out, analyzed and exported in various formats using the PC software supplied.

The Thickness Meter is therefore ideal for numerous applications. It reliably measures the thickness of paint coatings and other coating systems on a wide variety of surfaces. Plastics and glass can also be analyzed precisely. The device is also ideal for measuring multi-layer materials where individual layers need to be precisely determined. Even pipe walls and metallic substrates can be tested with high accuracy, making the device particularly versatile.

Highlights

• Multi-layer measurements for up to 3 layers
• Waveform display
• Adjustable sonic velocity
• 21 preset materials
• Continuous measurement possible
• Internal memory for 999 data sets
• IPS colour display
• PC software and data export

Specification
Material thickness
Measurement range up to ... 300 ... 14800 µm
Resolution ... 1 µm
Accuracy ... ±3% v.Mw. + 3 µm

Layer thickness
Measurement range up to ... 13 ... 5500 µm
Resolution ... 1 µm
Accuracy ... ±3% v.Mw. + 3 µm

Sensor
Battery type ... Ultrasound
Frequency ... 15 MHz
Min. measuring surface ... 6 millimetres
Dimension ... ø22 x 43
Cable length ... 75 cm

General technical data
Display type ... IPS
Display size ... 5 Inch
Display resolution ... 800x480 inch
Storage medium ... Internal memory
Storage capacity ... 999 Data records
Interface ... USB-C
Standard(s) ... GB/T 37361-2019, JJF1126-2004
Automatic power-off from...to ... 1 ... 30 min.
Automatic power-off can be deactivated ... Yes
Adjustable sound velocity ... 1000 ... 9999 m/s
Menu language ... English, English (GB), Chinese
Protection class (device) ... IP20
Power supply ... 5 V DC
Connector type ... Euro plug
(Rechargeable) battery ... 1 x 3.7 V internal, Lithium-ion polymer battery
Capacity ... 4000 mAh
Operating conditions ... 0 ... 50 °C, 0 ... 80 % RH
Storage conditions ... 0 ... 50 °C, 0 ... 80 % RH
Dimensions (L x W x H) ... 97 x 143 x 22 mm
Weight ... 371 g

Delivery Scope

• 1 x PCE-CT 1000 Thickness Meter
• 1 x Ultrasonic sensor
• 1 x Standard plate
• 1 x USB-C cable
• 1 x Transport case
• 1 x Coupling gel
• 1 x PC software (in the download area)

Characteristics / Technical Specifications

• Multi-layer thickness measurement
• External ultrasonic sensor
• Sound velocities stored
• Internal memory for 999 data records
• IPS color display
• PC software and data export
• Measurement range (material): 300 ... 14800 µm
• Resolution: 1 µm
• Accuracy: ±3% v.Mw. + 3 µm
• Measurement range (layer): 13 ... 5500 µm
• Sensor frequency: 15 MHz
• Min. measuring surface: 6 mm
• Display size: 5 inch
• Display resolution: 800x480
• Storage: 999 data records
• Interface: USB-C
• Standards: GB/T 37361-2019, JJF1126-2004
• Power supply: 5 V DC, 4000 mAh Li-ion battery
• Operating conditions: 0 ... 50 °C, 0 ... 80 % RH
• Dimensions: 97 x 143 x 22 mm
• Weight: 371 g
