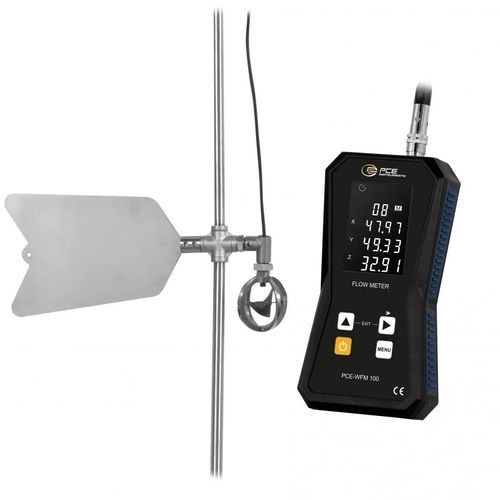

Magnetic flow meter PCE-WFM 100

volumefor waterportable

The PCE-WFM 100 is a portable river flow meter for precise on-site measurement of flow velocity in open channels (rivers, streams, canals) based on the velocity–area method. It is designed for handheld field use with low power consumption, an automated measurement procedure and an LCD display with LED backlight for stable and reliable readings.

Highlights

• Flow velocity measurement
• Flow rate calculation (velocity–area method)
• Extension rods and directional vane for depth and position adjustment
• Adjustable timer for averaged measurements
• Sensor with 5 m / 16.4 ft cable, IP68 protection

Delivery scope

• 1 x PCE-WFM 100 Flow Meter
• 1 x Sensor on 5 m / 16.4 ft cable
• 6 x Extension rods
• 1 x Directional vane
• 1 x Round disc
• 1 x Transport case

Technical specifications

• Measurement range (speed): 0.01 ... 10 m/s
• Resolution (speed): 0.01 m/s
• Accuracy (speed): 1.5 %
• Sensor type: Hall velocity (Hall rotation) sensor
• Sensor protection class: IP68
• Cable length (sensor): 5 m
• Display type: LCD with LED backlight
• Display size: 2.75 Inch
• Menu languages: English (GB), English (US), Chinese
• Device protection class: IP52
• Battery: 3 x 1.5 V AA (zinc-manganese dioxide)
• Battery capacity: 2970 mAh
• Operating conditions: -10 ... 50 °C, 10 ... 90 % RH
• Storage conditions: -10 ... 50 °C, 10 ... 90 % RH
• Dimensions (L x W x H): 175 x 85 x 33 mm
• Weight: 232 g
