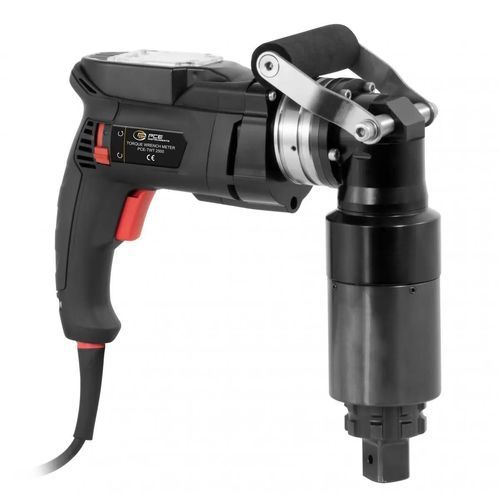

Electronic screwdriver PCE-TWT 2500

torqueprecisionhigh-precision

Description
The digital torque screwdriver combines modern technology with a robust design to deliver precise tightening for assembly operations. It supports two operating modes (torque and torque+angle), includes integrated protection functions (e.g. temperature monitoring), a multi-stage gearbox, high repeatability and a mains-powered configuration for continuous use. Supplied software enables reading and documenting all recorded fastening data and configuring central device settings directly.

Features

• Operating modes: torque, torque + angle
• Precise torque adjustment
• Multi-stage gearbox
• PC software for data readout and management
• Cable length: 3.2 m

Specification (table)
Torque
Measuring range: 400 ... 2500 Nm
Resolution: 1 Nm
Accuracy: ±5 % of measured value

General technical data
Cable length: 3.2 m
Unit(s): Nm
Drive connection: 1 inch
Display type: TFT color display
Display size: 1.1 inch
Storage medium: internal memory
Storage capacity: 66536 values
Interface: Mini-USB
Max. current consumption: 6 A
Speed: 7.5 rpm
Menu languages: English (GB), English (US), Chinese
Protection class (device): IP20
Power supply: 110 ... 220 V AC
Plug type: Euro plug
Battery: 2 x 18 V battery pack, lithium-ion
Battery capacity: 5200 mAh
Operating conditions: -20 ... 50 °C, 10 ... 90 % RH
Storage conditions: -20 ... 50 °C, 10 ... 90 % RH
Dimensions (L x W x H): 310 x 85 x 250 mm
Weight: 8000 g

Delivery content

• 1 x torque screwdriver PCE-TWT 2500
• 1 x support
• 1 x Mini-USB cable
• 1 x carrying case
• 1 x software (download area)

Characteristics / technical specifications

• Measuring range: 400 ... 2500 Nm
• Resolution: 1 Nm
• Accuracy: ±5 % of measured value
• Cable length: 3.2 m
• Unit(s): Nm
• Drive connection: 1 inch
• Display: TFT color display, 1.1 inch
• Storage: internal memory, 66536 values
• Interface: Mini-USB
• Max. current consumption: 6 A
• Speed: 7.5 rpm
• Menu languages: English (GB), English (US), Chinese
• Protection class: IP20
• Power supply: 110 ... 220 V AC
• Plug type: Euro plug
• Battery type: 2 x 18 V battery pack, lithium-ion (5200 mAh)
• Operating conditions: -20 ... 50 °C, 10 ... 90 % RH
• Dimensions: 310 x 85 x 250 mm
• Weight: 8000 g
