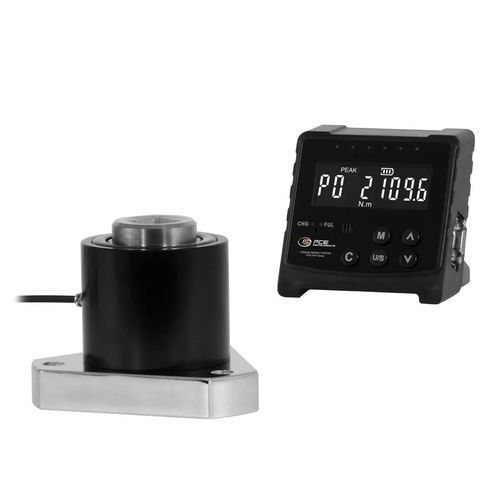

Portable torque meter PCE-TWT 2200NM

for calibrationdigitalbattery-powered

Description
Digital torque measuring device for industrial and laboratory use. External sensor with 1 in coupling and 150 cm cable, internal memory and 3.3 in LCD. LED traffic-light indicator provides quick visual pass/fail feedback. Accuracy ±1% in the range 10–100% of full scale. Supports clockwise and counter-clockwise measurement and operating modes including Peak Hold, MAX and real-time. Data export via Micro-USB to PC software which also offers pass/fail evaluation and configurable tolerances.

Features

• External sensor with 1 in coupling
• Operating modes: Peak, Max, Real-time
• Units: N·m, kgf·cm, lbf·in
• Internal memory for 2000 readings / 2000 reading groups
• Includes PC software for data export
• Data transfer: Micro-USB interface
• Power: internal 7.2 V NiMH battery (7800 mAh); external 12 V DC / 0.5 A adapter

Specifications
Model: PCE-TWT 2200NM
Measuring range: 220 - 2200 Nm
Resolution: 0.1 Nm
Accuracy: ±1% of reading (10–100% FS)
Sensor cable length: 150 cm
Display: 3.3 in LCD
Storage: internal memory, 2000 records
Interfaces: Micro-USB
Alarms: acoustic and visual
Protection class: IP20
Power supply: 12 V DC / 0.5 A; internal 7.2 V NiMH battery (7800 mAh)
Operating conditions: 5–40 °C, up to 90% RH
Dimensions (L x W x H): 118 x 90 x 103 mm
Weight: 397 g

Scope of delivery

• 1 x Digital torque meter PCE-TWT 2200NM
• 1 x Micro-USB cable
• 1 x Sensor cable (D-Sub to 4-pin circular connector)
• 1 x Power supply 12 V DC / 0.5 A
• 1 x PC software (download)
• 1 x Carrying case
• 1 x User manual

Technical characteristics

• Model: PCE-TWT 2200NM
• Order No.: PCE-TWT 2200NM
• EAN: 4250348739131
• Measuring range: 220 - 2200 Nm
• Resolution: 0.1 Nm
• Accuracy: ±1% of reading
• Sensor cable: 150 cm
• Memory: 2000 records
• Interface: Micro-USB
• Battery: 7.2 V NiMH, 7800 mAh
• Display: 3.3 in LCD
• Protection class: IP20
• Dimensions: 118 x 90 x 103 mm
• Weight: 397 g
