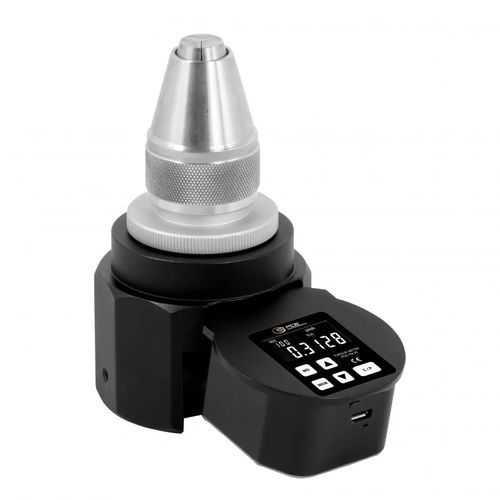

Portable torque meter PCE-TM 05

electronicautomaticUSB

Product description
Digital torque meter for measuring torques. It offers a measuring range of 0.1–0.5 Nm, a resolution of 0.0001 Nm and an accuracy of ±2% of the reading. The instrument provides several operating modes, including real-time display, peak capture and modes to store and analyze peaks. In Pre Mode HI (maximum stored peak), LO (minimum stored peak) and AVGE (average of stored peaks) are available. The device supports multiple measurement units and uses a keyless three-jaw chuck to secure the test piece. Up to 100 torque peaks can be saved automatically or manually. Automatic saving of peaks can be set between 0 and 4 s. A Micro-USB interface enables data transfer and an automatic power-off function preserves battery life. The instrument is powered by a rechargeable lithium-ion battery. Its compact size and user-friendly operation make it suitable for quality control, R&D and material and load testing.

Features

• Real-time mode
• Peak mode
• Pre mode (HI/LO/AVGE)
• Units: Nm, lbf·ft, kgf·cm, lbf·in
• Rotatable in both directions
• Micro-USB interface
• Automatic power-off

Delivery contents

• 1 x Torque meter PCE-TM 05
• 1 x Micro-USB cable
• 1 x Carrying case
• 1 x PC software (download)
• 1 x Power supply 5 V DC
• 1 x User manual

Characteristics / Specifications

• Measuring range: 0.1–0.5 Nm
• Resolution: 0.0001 Nm
• Accuracy: ±2% of reading
• Measurement functions: Peak, MIN, MAX, Average
• Units: lbf·ft, Nm, kgf·cm, lbf·in
• Display type: LCD
• Display size: 1.2 in
• Storage: Internal memory
• Storage capacity: 100 values
• Interface: Micro-USB
• Auto power-off: 0–15 min
• Menu language: English (US), English (GB)
• Protection class (device): IP20
• Power supply: 100–240 V AC | 50/60 Hz
• Plug type: Euro plug
• Battery: 1 x 3.7 V internal, lithium-ion
• Capacity: 1200 mAh
• Operating conditions: 0–40 °C, 0–85% RH
• Storage conditions: -10–60 °C, 0–85% RH
• Dimensions (L x W x H): 135 x 75 x 67 mm
• Other dimensions: Hex nominal size: 6.35 mm; Clamping range: 1–8 mm
• Weight: 766 g
