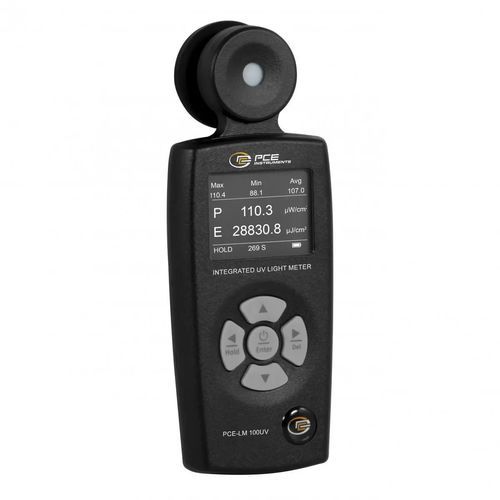

UV integrator PCE-LM 100UV

Description
Precise UVC intensity and energy meter for professional UVC measurements and validation of disinfection processes. Designed for accurate measurement of UVC radiation (spectral sensitivity 230 nm to 280 nm, peak at 254 nm). High-precision UVC filters and a professional UV sensor minimise interference from other wavelengths. The instrument displays real-time, maximum, minimum and average values and reports measurement duration and accumulated energy for reliable monitoring and documentation of UVC exposures. Automatic data logging secures readings during long or unattended measurements. A USB-C port enables connection to a PC; dedicated PC software supports data export and report generation. Suitable for testing and monitoring UV disinfection systems in medical facilities, laboratories, pharmaceutical production, food processing and water, air and surface disinfection installations. Complies with standards JJG 879-2015 and WS/T 367-2012.

Features

• Spectral sensitivity: 230 nm to 280 nm, peak at 254 nm
• Automatic data logging
• USB-C interface with PC software for data export and report generation
• Displays real-time, maximum, minimum and average values
• Displays measurement duration and accumulated energy

Specification (excerpt)
Radiation – measuring range: 0 ... 50 µW/cm²
Radiation – resolution: 0.1 µW/cm²
Radiation – accuracy: ±4 μW/cm²
Radiation – measuring range (extended): 50 ... 20000 µW/cm²
Radiation – resolution (extended): 0.1 µW/cm²
Radiation – accuracy (extended): ±8 % of reading
Radiation – energy range: 0 ... 9999999 μJ/cm²
Radiation – energy resolution: 0.1 μJ/cm²

General technical data
Units: µW/cm², mW/cm², W/m²
Display type: backlit LCD
Display size: 2.16"
Display resolution: 240 x 160 pixels
Memory: internal storage
Memory capacity: 9 datasets
Interface: USB-C
Standards: JJG 879-2015, WS/T 367-2012
Response time: 0.5 s
Spectral range: 230 ... 280 nm
Additional notes: long-wave response error 60%; cosine characteristic 10%; linearity error ±1%; short-term instability ±1% (30 minutes after start); fatigue attenuation 2%; zero error ±0.1% of full scale
Protection class (device): IP20
Power supply: 5 V DC
Battery: 2 x 1.5 V AA (alkaline-manganese)
Battery capacity: 2970 mAh
Operating conditions: 0 ... 40 °C, 0 ... 85% RH
Storage conditions: 0 ... 50 °C, 0 ... 85% RH
Dimensions (L x W x H): 190 x 75 x 30 mm
Weight: 194 g

Delivery contents

• 1 x UVC intensity and energy meter PCE-LM 100UV
• 1 x USB-C cable
• 2 x AA batteries 1.5 V
• 1 x holder with test hook (1 m length)
• 1 x silicone protective cover
• 1 x user manual
• 1 x transport case

Technical characteristics

• Model: PCE-LM 100UV
• Brand: PCE Instruments
• Spectral range: 230 - 280 nm (peak 254 nm)
• Measuring ranges: 0–50 µW/cm² ; 50–20000 µW/cm² ; Energy 0–9999999 μJ/cm²
• Resolution: 0.1 µW/cm² / 0.1 μJ/cm²
• Accuracy: ±4 μW/cm² (low range), ±8% of reading (high range)
• Display: backlit LCD, 2.16" (240x160 pixels)
• Memory: internal, 9 datasets
• Interface: USB-C with PC software
• Power: 5 V DC; 2 x AA 1.5 V (alkaline-manganese)
• Protection: IP20
• Dimensions: 190 x 75 x 30 mm
• Weight: 194 g
• Standards: JJG 879-2015, WS/T 367-2012
