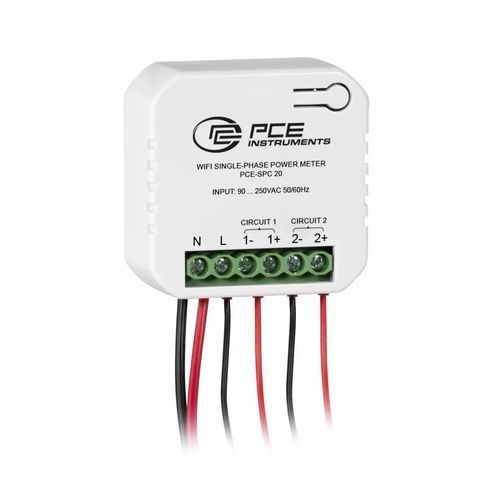

Energy meter power meter PCE-SPC 20

active powerDIN railwireless

Description
The PCE-SPC 20 power meter provides precise measurement and monitoring of electrical energy consumption in installations (residential, commercial, light industrial). It supports circuit analysis and real-time monitoring to help optimise energy use. The device uses two 20 A closed‑core current transformers for non-intrusive current measurement (pass conductor through CT). Voltage is measured via the device supply. From current and voltage the unit calculates power (W) and energy (kWh) and displays results clearly. The meter is designed for 35 mm DIN‑rail mounting in distribution cabinets. Measurement data are transmitted via 2.4 GHz WLAN to a mobile app (Tuya / Smart Life) for live display, storage, analysis and export. The device itself does not retain long-term trend data; values update approximately every 15 seconds.

Features

• Current measurement via closed-core (toroidal) current transformers
• Real-time monitoring: voltage (V), current (A), power (W), energy (kWh)
• WLAN 2.4 GHz, compatible with Tuya / Smart Life app
• Measurement update interval: approx. 15 s
• LED status indicators (WLAN / power)
• Remote access from anywhere
• Data history & export (hour / day / month / year) via app
• DIN-rail (35 mm) mounting for switchboard installation

Delivery contents

• 1 x power meter PCE-SPC 20
• 2 x 20 A closed-core current transformers
• 1 x mains supply cable, 90 cm
• 1 x user manual
• 1 x mounting bracket with screws

Specifications (summary)
AC measurement
Range 0 ... 1 A
Resolution 0.001 A
Accuracy ±2 % of reading
Frequency range 50 ... 60 Hz

AC measurement
Range 1 ... 20 A
Resolution 0.001 A
Accuracy ±1 % of reading
Frequency range 50 ... 60 Hz

Sensor
Cable length: 20 cm
Dimensions: outer Ø 23 mm / inner Ø 6 mm

General technical data
WLAN frequency: 2.4 GHz
Interface: WLAN
Wireless standard: 802.11b / 802.11g / 802.11n
Mounting: 35 mm DIN rail
Measurement interval: 15 s
Protection class (device): IP20
Power supply: 90 ... 250 V AC | 50/60 Hz
Operating conditions: -20 ... 55 °C, 0 ... 90 % r.h.
Storage conditions: -20 ... 55 °C, 0 ... 90 % r.h.
Dimensions (L × W × H): 45 × 45 × 19 mm
Weight: 31 g

Characteristics / technical specifications

• 2‑channel measurement with two 20 A closed‑core current transformers
• Non‑intrusive current measurement via toroidal CTs
• Real‑time data transmission via WLAN to Tuya/Smart Life app
• Data history and export functions available in the app
• DIN‑rail (35 mm) mounting for distribution cabinet installation
• IP20 protection class
