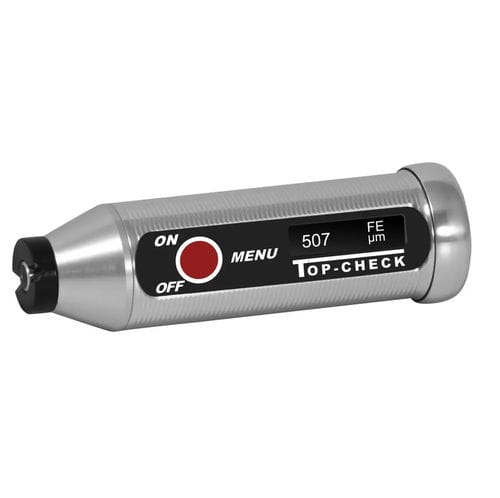

Ferrous coating thickness gauge LM-TC-F1001

handheldmagnetic inductionmanual calibration

Description
The LM-TC-F1001 is a compact coating thickness gauge designed for precise measurements on ferrous (Fe) substrates. It features a small, tactile probe with a self-aligning prism that enables reliable thickness readings on wires and round stock. The device is nearly the size of the probe itself, making it suitable for thin coatings on steel cables, springs and similar geometries.
The housing is metal and rated IP64 for splash protection, and operation is simplified to a single button and a multilingual menu. The probe uses a magnetic induction principle compliant with ISO 2178 for measuring paint, lacquer, plastic, rubber, ceramic, galvanic coatings and zinc coatings (excluding nickel) on iron and steel.
The instrument supports wireless data transfer to Android and iOS mobile devices as well as Windows PCs. Internal memory is configurable and the free "Lima Connect" app / PC software allow project management, photo-tagged measurement points, statistical analysis and graphical representation of results.

Features

• Spring-loaded probe
• Self-aligning prism for round material and wires
• For Fe (ferrous) metals
• Wireless interface for Windows, iOS and Android
• OLED display
• IP64 housing

Contents

• 1 x Coating thickness gauge LM-TC-F1001
• 1 x Calibration base plate FE
• 2 x Calibration foils
• 1 x Replacement battery
• 1 x Carrying case
• 1 x Calibration certificate
• 1 x User manual
• 1 x PC software Lima Connect (download)
• 1 x App "Lima Connect" (app stores)

Specifications

• Material measured: Fe
• Measurement range: 0 ... 1000 µm
• Resolution: 0.1 µm
• Accuracy: < 100 µm: ± 1 µm; > 100 µm: ± 1 %
• Sensor (designation): TOP CHECK Ferro
• Mode: Magnetic mode (Fe)
• Measurable coatings: Paint, lacquer, plastic, rubber, ceramic, zinc and galvanic coatings on steel (ISO 2178)
• Min. measuring area: ø 2 mm
• Min. coating thickness: 0 µm
• Min. convex curvature radius: 1 mm
• Min. concave curvature radius: 6 mm
• Additional description: tactile probe with self-aligning prism
• Measurement functions: Count, MAX, MIN, Average, Standard deviation
• Units: µm, mil
• Display type: OLED
• Memory capacity: 4000 values (flexible allocation)
• Interface: Wireless
• Operating time: 50 h
• Calibration: 300 µm
• Menu languages: German, English (GB), English (US), French, Italian, Spanish, Hungarian, Polish
• Protection class (device): IP64
• Power supply: 1 x 1.5 V AA
• Battery: 1 x 1.5 V AA, alkaline-manganese
• Battery capacity: 3000 mAh
• Energy: 4.5 Wh
• Operating conditions: 0 ... 50 °C, 10 ... 90 % RH
• Storage conditions: 0 ... 50 °C, 10 ... 90 % RH
• Dimensions (L x W x H): 95 x 28 x 28 mm
• Weight: 76 g
