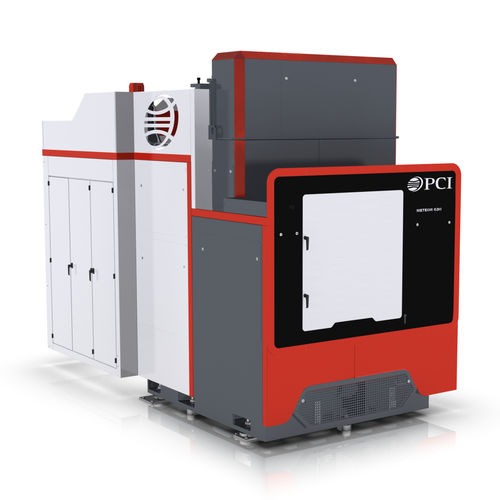

4-5 axes CNC machining center Meteor 630horizontalgantrywith rotary tilting table
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-5 axes
- Spindle orientation
- horizontal
- Structure
- gantry, with rotary tilting table
- Machined material
- for aluminum
- Spindle mount
- HSK A-63
- Number of tool stations
- 27 tools, 34 tools, 40 tools, 52 tools
- Applications
- for the automobile industry
- Other characteristics
- milling, high-speed, high-performance, high-precision, CE, tapping, automated loading/unloading, with pallet changer, for production, with linear motor
- X travel
Max.: 630 mm
(25 in)Min.: 0 mm
(0 in)- Y travel
Max.: 630 mm
(25 in)Min.: 0 mm
(0 in)- Z travel
Max.: 630 mm
(25 in)Min.: 0 mm
(0 in)- Rotational speed
Max.: 18,000 rpm
(113,097 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
30 kW, 50 kW
(40.79 hp, 67.98 hp)- Workpiece max height
960 mm
(38 in)- Work feed X-axis
80,000 mm/min
(52 in/s)- Work feed Y-axis
90,000 mm/min
(59 in/s)- Table load capacity
250 kg, 500 kg
(551 lb, 1,102 lb)- Tool weight (max)
8 kg, 16 kg
(17.6 lb, 35.3 lb)- Positioning accuracy
0.006 mm
(0 in)- Repeatability
0.02 mm
(0.001 in)- Tool-changing time
3.3 s
- Weight
20,015 kg
(44,125.52 lb)- Overall length
4,195 mm
(165.2 in)- Overall width
2,390 mm
(94.1 in)- Overall height
3,419 mm
(134.6 in)
Description
Horizontal machining center - METEOR 630
Meteor 630 has been developped for the new 2017 range in two different solutions: palletized and non-palletized versions.
★ Main characteristics
♦ 4 or 5-axis
♦ Developed for aluminium treatment
♦ High speed spindle
★ Technical data
♦ Loading methods : Gantry | Palletiser
♦ X,Y,Z travel : 630/630/630 mm
♦ X,Y,Z rapid feedrates : 90/80/80 m/min
♦ Spindle maximum rotation speed : 0-18 000 tr/min
♦ Digital controls : Fanuc 31i-B or Siemens Sinumerik 840 D SL (option)
VIDEO
Catalogs
Meteor 630
2 Pages
