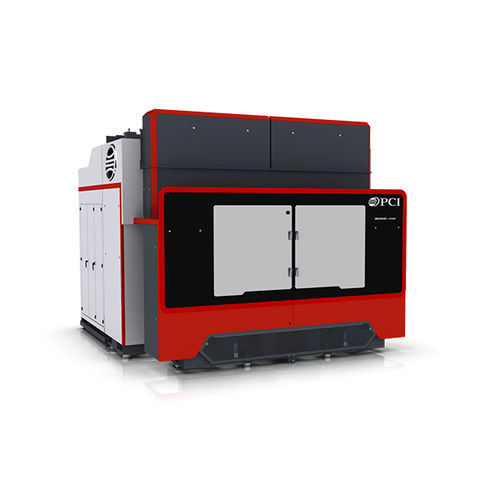

4-5 axes CNC machining center Meteor 1800horizontalgantry typerotating table
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-5 axes
- Spindle orientation
- horizontal
- Structure
- gantry type, rotating table
- Machined material
- for aluminum
- Spindle mount
- HSK A-63
- Number of tool stations
- 34 tools, 40 tools, 52 tools
- Applications
- for the automobile industry
- Other characteristics
- high-speed, high-performance, high-speed
- X travel
Max.: 1,805 mm
(71 in)Min.: 0 mm
(0 in)- Y travel
Max.: 630 mm
(25 in)Min.: 0 mm
(0 in)- Z travel
Max.: 630 mm
(25 in)Min.: 0 mm
(0 in)- Rotational speed
Max.: 18,000 rpm
(113,097 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
30 kW, 50 kW
(40.79 hp, 67.98 hp)- Work feed X-axis
90,000 mm/min
(59 in/s)- Work feed Y-axis
80,000 mm/min
(52 in/s)- Table load capacity
250 kg, 500 kg
(551 lb, 1,102 lb)- Tool weight (max)
8 kg, 16 kg
(17.6 lb, 35.3 lb)- Positioning accuracy
0.006 mm
(0 in)- Repeatability
0.002 mm
(0 in)- Tool-changing time
3.3 s
- Weight
11,670 kg, 20,015 kg
(25,727.95 lb, 44,125.52 lb)- Overall length
4,195 mm, 5,480 mm
(165.2 in, 215.7 in)- Overall width
2,390 mm, 2,950 mm
(94.1 in, 116.1 in)- Overall height
3,419 mm
(134.6 in)
Description
Horizontal machining center
METEOR 1800 | 1800-P series
Meteor 1800 has been developped for the new 2017 range in two different solutions: palletized and non-palletized versions.
★ Main characteristics
♦ 4 or 5-axis
♦ Developed for aluminium treatment
♦ High speed spindle
★ Technical data
♦ Loading methods : Gantry | Palletiser
♦ X,Y,Z travel : 1800/630/630 mm
♦ Digital controls :
Fanuc 31i-B
Siemens : Sinumerik 840 D SL (option)
