4-5 axes CNC machining center METEOR TS900horizontalgantryfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-5 axes
- Spindle orientation
- horizontal
- Structure
- gantry
- Machined material
- for aluminum, for cast iron
- Spindle mount
- HSK A-63, HSK-100-A, HSK-63
- Number of tool stations
- 40 tools, 34 tools
- Applications
- for the automobile industry, for large workpieces
- Other characteristics
- high-speed, high-performance, high-precision
- X travel
900 mm, 1,800 mm, 2,420 mm
(35 in, 71 in, 95 in)- Y travel
Min.: 0 mm
(0 in)Max.: 1,200 mm
(47 in)- Z travel
Min.: 0 mm
(0 in)Max.: 630 mm
(25 in)- Rotational speed
12,000 rpm, 18,000 rpm
(75,398 rad.min-1, 113,097 rad.min-1)- Power
30 kW, 42 kW, 50 kW, 65 kW
(40.79 hp, 57.1 hp, 67.98 hp, 88.38 hp)- Work feed X-axis
70,000 mm/min
(46 in/s)- Work feed Y-axis
60,000 mm/min
(39 in/s)- Tool weight (max)
8 kg, 15 kg, 16 kg, 20 kg
(17.6 lb, 33.1 lb, 35.3 lb, 44.1 lb)- Tool-changing time
3.8 s
- Weight
25,000 kg, 29,000 kg
(55,115.57 lb, 63,934.06 lb)
Description

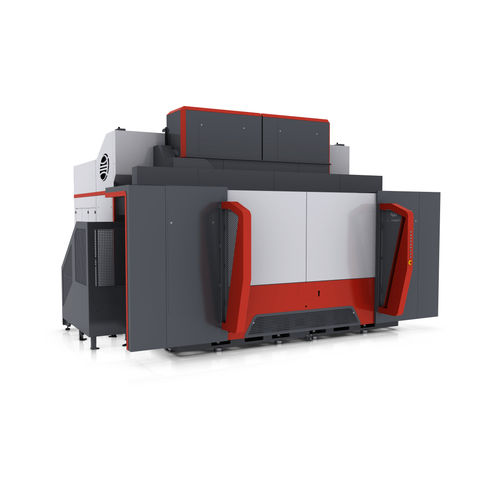

Horizontal machining center
METEOR TS900 | TS900V-W series
Meteor TS900V has been develoepd in 2019 to complete the 2017 range and exists in two solutions: with or without a W aixs. He also has two independent spindles.
★ Main characteristics
♦ 4 or 5-axis
♦ Developed for aluminium and cast iron treatment
♦ HSK100 | HSK63 spindle (optional)
♦ Optional W axis for large-sized components
★ Technical data
♦ Loading methods : Gantry
♦ X,Y,Z | W travel : 900-1800/800/630 | 630 mm
♦ X,Y,Z | W rapid feedrates : 70/60/80 | 80 m/min
♦ Spindle maximum rotation speed : 0-12 000 | 0-18 000 tr/min
♦ Digital controls : Fanuc 31i-B || Siemens Sinumerik 840 D SL (option)
Catalogs
Meteor 900
2 Pages
