Ethernet receiver Gflex ®

USBcompact

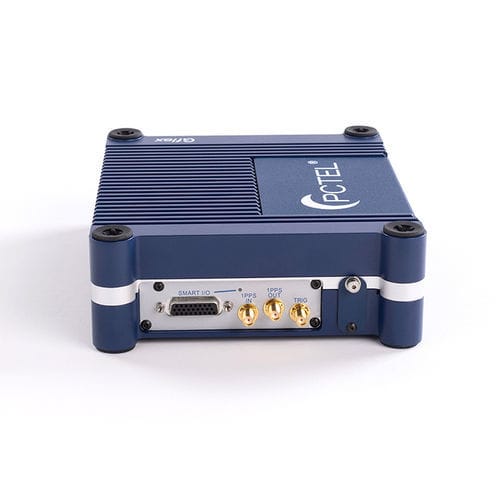

The Gflex ® scanning receiver is the next generation of mobile network testing from PCTEL®. Designed to support drive testing, walk testing, and government applications for 2G-5G and beyond, the Gflex sets a new standard for power, portability, and flexibility in a 5G and mmWave capable scanner. A single lightweight Gflex scanner can collect all the mmWave and sub-8 GHz data you need to benchmark multiple operator networks in one pass, with one unit. Gflex ® Features Measures up to 120 5G channels Ultra-fast concurrent 5G/4G testing 20/100 MHz wide step IF filter I/Q streaming/capture 5G/4G/3G/2G mobile blind scan Non-terrestrial network (NTN) measurements Dual polarization beamforming measurements 4G/5G Dynamic Spectrum Sharing (DSS) 4×2 and 2×2 LTE MIMO Measurements Technologies 5G NR WiFi 6 LTE FDD TD-LTE LTE C-V2X NB-IoT (LTE) UMTS GSM Spectrum analysis and custom power measurements for any channel Frequency Range Sub 8 GHz: 10 MHz – 8 GHz mmWave: 24.26 – 44 GHz (continuous), 47.2 – 48.2 GHz (continuous)
