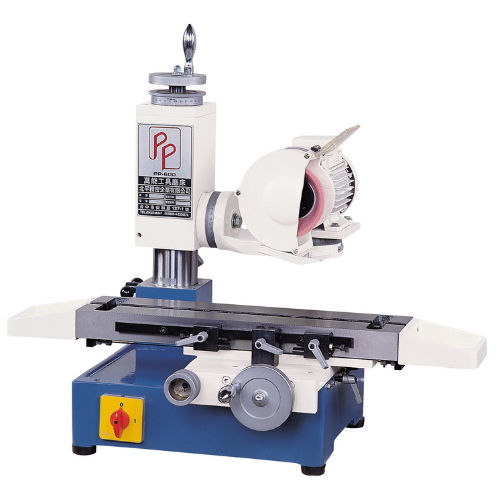

Workpiece sharpening machine PP-600

for gearsfor valvessemi-automatic

1. The wheel head is with 4 axises. There are two types of wheel head: single or double. 2. Adopt high precision cross roller guide on the table. The table is stable and can be operated smoothly. 3. Adopt cast iron with high toughness. It can keep the precision of the machine in the long term. The types of tools to be ground include: Drill, tap, (taper)end mill, (corner)radius end mill, turning tool, radius turning tool, chamfer cutter, countersink cutter, engraving cutter, side milling cutter, hob, reamer, T-slot cutter, gun drill, hole saw, annular cutter, slitting cutter, punch, round bar, etc. Standard Accessories: 1. Grinding Wheel(Type:11A)-1 PC 2. PP-600: Grinding Wheel Flange-1 SET PP-600-DW: Grinding Wheel Flange- 2 SETS 3. Flange Wrench-1 PC 4. Work Light-1 SET 5. Tools for General Use-1 SET Optional Accessories: 1. SDC Electroplated Grinding Wheel 2. CBN Electroplated Grinding Wheel 3. 5C Collet (Min.3mm~ Max.25mm) 4. 5C Special Collet (32mm/42mm) 5. Morse Taper Sleeve (No.2) 6. Work Cabinet
