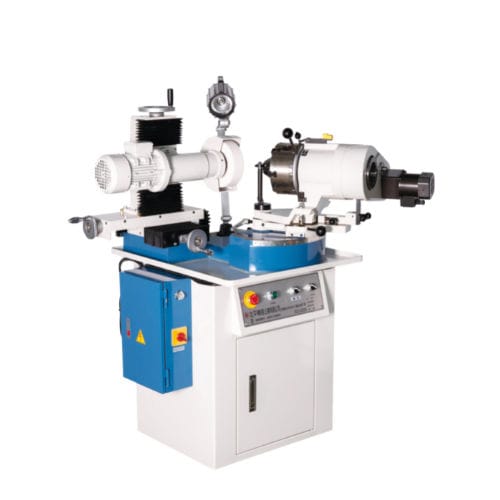

Manually-controlled sharpening machine PP-100N

semi-automaticprecisionuniversal

1. For dressing grinding wheel, set the diamond dresser on the chuck and adjust the chuck grinding angle and reciprocating feed of the wheel head. The wheel motor can be adjusted 160mm vertically and rotate 180°. It can increase the function of machinery. 2. Adopts the precision awl type chuck. It can clip stably. At the same time, it can grind the cutting edge and web thickness of drills in one set-up. The both sids of drill angle and the edge length are equal. It could keep the accuracy of the center of drill without offset. 3. Easy operation, grind fast and precisely. The types of tools to be ground: Drill, step drill, center drill, spotting drill, countersink cutter, tap, chamfer cutter, edge of end mill, engraving tool, sheet metal drill, round bar, etc. Standard Accessories-80N: 1. 9" 8-jaw Awl Type Chuck-1 SET 2. Chuck Handle-1 PC 3. Grinding Wheel(Type:7A)-1 PC 4. Grinding Wheel Flange-1 SET 5. Flange Wrench-1 PC 6. Morse Taper Sleeve- 4 PCS (No.3,4,5,6) 7. Cam-5 PCS (No.4,6,8,9,A2) 8. Auto Cycle Motor-1 SET 9. Cooling System-1 SET 10. Work Light-1 SET 11. Tools for General Use-1 SET 12. Work Cabinet-1 SET Optional Accessories: 1. SDC Electroplated Grinding Wheel 2. CBN Electroplated Grinding Wheel
