Energy consumption measuring system BTC1000 serieselectronic
Add to favorites
Compare this product
Characteristics
- Measured physical value
- energy consumption
- Technology
- electronic
Description

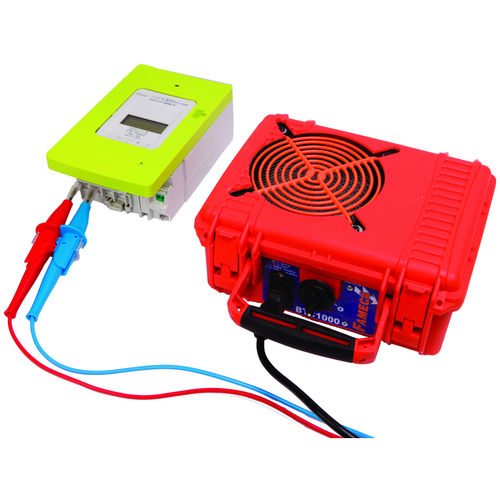

This device is used to check the correct operation of subscriber meters (electromechanical, electronic, single and three-phase).
It is also used to check for under-consumption (in KWh) and fraud known as "non-technical losses".
Technical specifications
Power supply : none (self-powered by the network).
Operating voltage : 230 V
Frequency : 50/60 Hz
Power consumption: 1000 W.
Display : 1 red "On" LED
Operating time: unlimited.
Thermal protection: yes.
Test probes : IP2X - Ø 4 mm or STD - Ø 1.4 mm.
Double insulated PVC cable 1 mm², L = 1.5 m.
Connectors : Connection by IEC 60320 plugs.
Casing : Orange shockproof PP.
