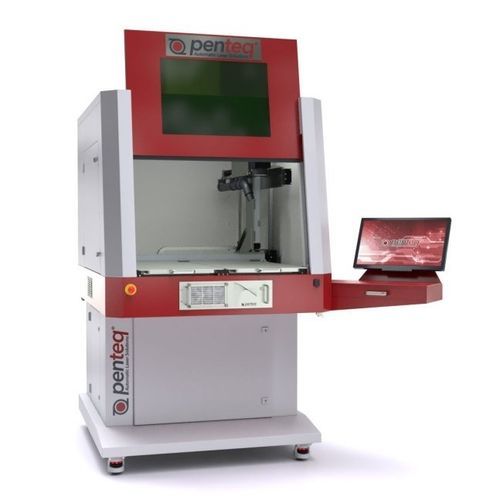

Laser marking machine LG 300

for large partsautomatedcomputer-controlled

The LG 300 Laser Workstation is the solution for the marking of large workpieces or a large number of small workpieces. With the optional function module Double extension table the productivity can be greatly increased and thus represents an alternative to turntable laser devices. Basic system characteristics • Control via integrated industrial PC • Can be equipped with up to 5 controlled axes • All necessary components such as laser cabin, control, supply unit and suction in one system. • Standard label field 150 x 150 mm (Other areas on request) • Generous working space (1000 x 500 x 300mm) • Dimensions: 1200 x 1510 x 2200 mm • Generous door for optimum laser room LG 300 Laser Workstation The Penteq LaserWorkStation LG300 enables the marking of many workpieces with small dimensions in one load or large and heavy workpieces made of different materials due to its large working area. The concept of the double extract table offers various advantages over rotary table systems: • Larger reception area for high load capacity • Rectangular table tops compared to the "pie piece" in the turntable • The entire table Pad 1000 x 500mm is available for inserted tables • More room for function modules such as. e.g. Large rotation axes, CardMaker, etc. • Alternative edits by dividing right/left station. • Automated flow through control technology integration of the double table In addition, the double extension table module offers the possibility of loading and unloading one table at a time simultaneously with the marking process.
