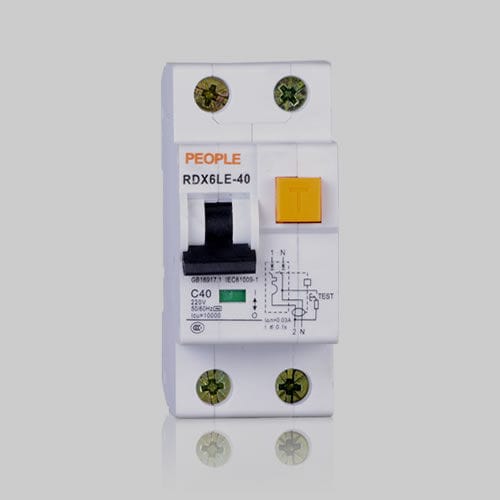

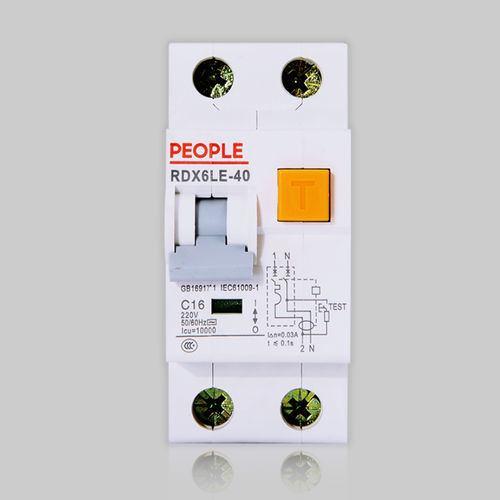

Earth-leakage residual current circuit breaker RDX6LE-40

modular

RDX6LE-63 Residual circuit breaker,be mainly applied to the circuit of AC50Hz(60Hz), rated working voltage 220V or 380V, rated current up to 63A to protect human against the electric leakage indirectly, and to prevent the fire result from the ground fault due to the damaged insulation of the equipment.And it also has the overload protection for the building circuit or other similar circuit. And it hase the powerful auxiliary function module, like auxiliary contact, alarm indication contact, shunt and underlvoltage release, remote release control. Normal working condition and Installation environment 3.1 Altitudeof Installation location no more than 2000m. 3.2 The relative humidity: no more than 50%, when Temperature is +40 ºC. The product can withstand the higher humidity under lower temperature, for instance, when temperature at +20ºC, the product can withstand 90% relative humidity. The condensation that happened because of temperature changes should be taken care in special measurements 3.3 Class of pollution : 2 Class 3.4 Electronicmagnetic environment: B 3.5 Installation condition: I, II type 3.6 Installation method: TH35-7.5, distribution box or cabinet.
