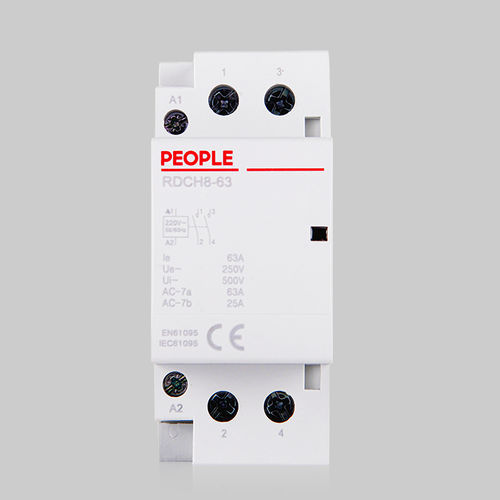

Power contactor RDCH8

AC4-pole3-pole

RDCH8 series AC contactor, is mainly applied to circuit of 50Hz or 60Hz, rated operational volteage up to 400V, Rated operational current up to 63A, to control the household appliance and the low induction load, and also can control the household motor load, the control power should decreased accordingly. This production can be used in the household, hotel, apartment those place to realize automation, and also can used in the other appliance. Normal working condition and Installation environment 3.1 - Temperature: -5° +40° , the average temperature of 24 hours should not exceed 35°C. 3.2 - Altitude : should not exceed 2000m. 3.3 - The relative humidity: no more than 50%, when Temperature is +40°C. The product can withstand the higher humidity under lower temperature, for instance, when temperature at +20°C, the product can withstand go% relative humidity. 3.4 - Pollution class: 2 class 3.5 - Installation type: Il class 3.6 - Installation codition: the angle between the prodouct and vertical plane should not exceed 59. 3.7 - Installation methods: adopt 35mm DIN-Rail 3.8 - Protection class: IP20.
