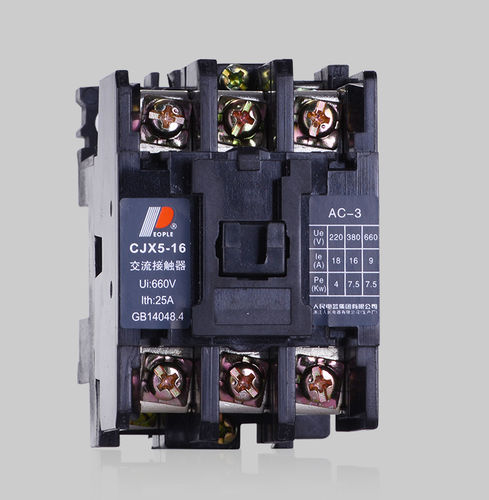

Electromagnetic contactor CJX5

ACIEC

CJX5 Series AC Contactor is suitable for the circuit of AC 50Hz or 60Hz, rated operating voltage up to 690V, rated current up to 105A, for remotely connecting and breaking the electric products, can be combined with the thermal relay into electromagnetic starter, to protect the circuit that may occur operation over load. ► Normal operating condition and installation condition 3.1 - Ambient temperature: -5',C~+40”C, average value within 24h does not exceed +35°C 3.2 - Altitude: does not exceed 2000m 3.3 - Relative humidity does not exceed 50% when the highest temperature is +40 ”C, it is allowed relatively high humidity when it is at relatively low temperature, for example, it reaches 90% when 20 °C, it should take appropriate measurements when there produced condensation on the product due to the temperature variation. 3.4 - Grade of pollution: 3 3.5 - Installation category: III 3.6 - Installation position: gradient between installation side and the vertical side does not exceed ±5° 3.7 - Impact and vibration: product should be installed at the places of without obvious shake, impact and vibration.
