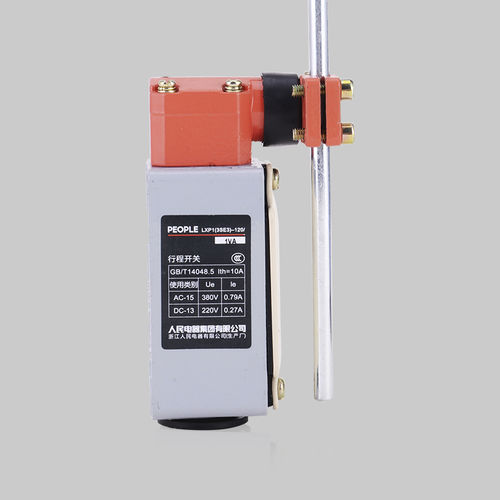

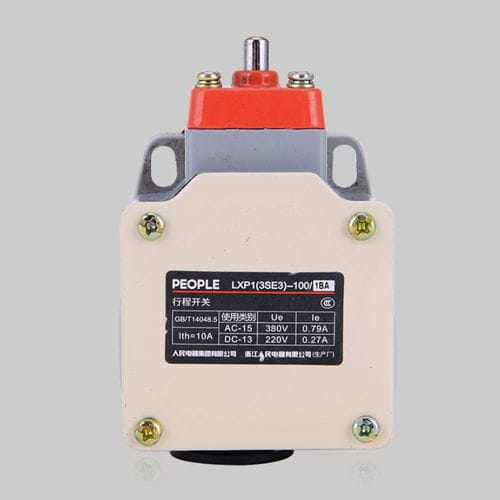

Rotating cam limit switch LXP1

with rotary leverwith flexible rodmechanical

LXP1 series travel switch is applicable for Control circuit of AC40Hz to AC60Hz, AC voltage up to 500V,DC voltage up to 600V,current up to 10A. It can convert mechanical signal to electrical signal, as motion mechanism trip and speed control or program control Structure This series production can be classified into open type and protective type. Open type has 2P and 3P. 3P open type only has wiggle type. 2P has 4 type bridge type, Instantanous type,wiggle type,wiggle one bridge and wiggle cross four type. Protective type has 2P,3P,4P.It has 4 kinds types,1NO+1NC,1NO+2NC, 2NO+1NC and 2NO+2NC. Main technical parameter 5.1 Ambient temperature:-40ºC to +85ºC 5.2 Rated insulation voltage:Ui=AC500V;DC600V 5.3 Max operation voltage:Ue=500V same pole. 5.4 Rated heating current:Ith=10A 5.5 Rated operation current:Ie see the following Table 5.6 Mechanical life:300 thousand 5.7 Electrical life:Ie=1A/AC-11.5 million;Ie=0.5A/AC-11,10 million 5.8 Push rod measuring repetitive motion accuracy: 0.02mm 5.9 Protective shell output line:M20x1.5 5.10 Wire connection capacity of contact:Solid wire 2x25mm2; Stranded wire(with lead)2x1.5mm2
