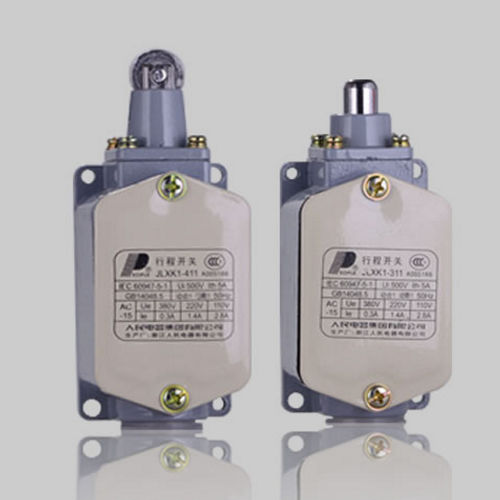

Rotary limit switch JLXK1

smallcontrolmetal case

JLXK1 series limit switch is suitable for the circuit of AC 50Hz, voltage up to 380V or DC voltage up to 220V, as the use of machine tool auto control, limit the stroke of moving mechanism and alternating the moving direction or the control of procedure. The limit switch is designed, manufactured and inspected according to GB 14048.5 and relevant standards. Normal operating condition and installation condition 3.1 Altitude does not exceed 2000m 3.2 Ambient temperature: -25C~+40C 3.3 Relative humidity does not exceed 85% (20±5)C 3.4 At the medium of without explosive danger, and the medium without the gas and dust (include the conductive dust ) that corrode and damage the insulation. Main technique parameter 4.1 Basic technique parameter of limit switch: rated voltage AC 380V, DC 220V; Rated current 5A; Shifting time of contact: <=0.04s 4.2 Action characteristics to see table 1
