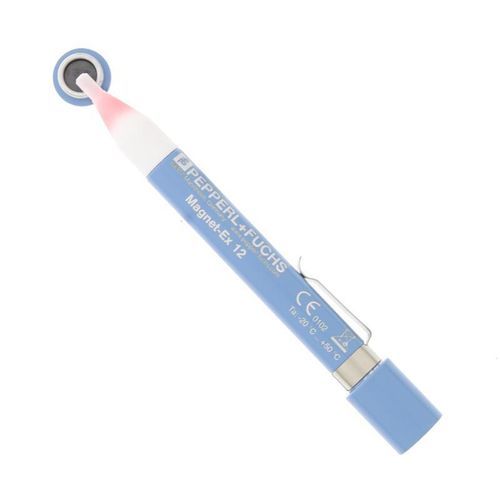

Active probe Magnet-Ex 12

magnetic fieldfor hazardous environmentsintrinsically safe

Product overview The Magnet-Ex 12 is a pen-shaped, intrinsically safe test probe for quick, non-contact detection of magnetic fields in hazardous (explosive) areas. Its highly sensitive tip allows checking solenoid valves, magnets in float flow meters, relays or transformers for excitation without connecting to a control circuit or opening terminal boxes.

Operation The test tip is simply held close to the coil or magnetic element. When a magnetic field is detected, the tip lights red. An integrated test magnet enables self-tests and battery checks. After testing the device switches off automatically to conserve battery life. A side clip allows secure carrying in a jacket pocket.

Application area For checking solenoid valves, relays, transformers and float-type flow meters in Ex areas.

Features

• Highly sensitive tip
• Non-contact detection
• Resistant to contamination
• Optical indication (tip lights red)
• Built-in test magnet for self-test and battery check

Delivery contents

• Magnet-Ex 12
• Batteries
• Documentation

Ex approval ATEX (Europe): II 2G Ex ia IIC T4 Gb

Characteristics / Specifications

• Art.-No.: 70125482
• Magnetic field types: AC, DC and permanent fields
• Detection: non-contact
• Ingress protection: IP54
• Operating temperature: -20 °C … +50 °C (-4 °F … +122 °F)
• Storage temperature: -40 °C … +60 °C (-40 °F … +140 °F)
• Power supply: 2x LR03 according to IEC (type-tested)
• Dimensions: 150 mm x 18 mm (L x ø) (≈ 5.9" x 0.7")
• Weight: approx. 60 g (with batteries)
