Barcode scan engine SM-Ex S203 SR

2D

Product description

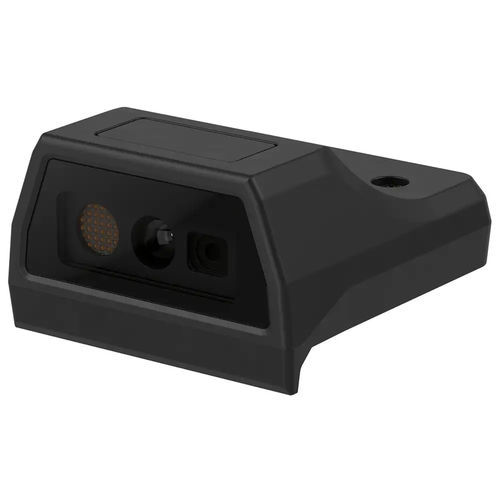

Scanner module SM-Ex S203 SR designed for integration into Smart-Ex® 203 devices. Compact 1D/2D scan module based on the SE4107 engine, intended for industrial applications requiring a lightweight, precise scanning solution.

Key benefits

• SE4107 1D/2D scan engine
• Bright white illumination and green LED aiming point
• Very low weight: 25 g
• Wide field of view: 44.5° horizontal × 33.5° vertical
• High orientation tolerance: ±60° pitch/tilt, 360° roll

Technical data - Hardware
Scan engine: SE4107 1D/2D scan module
Sensor technology: Rolling-shutter
Resolution: 1280 x 960 pixels (1.3 MP)
Aiming: green LED
Illumination: white
Field of view: Horizontal 44.5°, Vertical 33.5°
Focal distance: From front of scan module: 152.4 mm
Orientation tolerance: Pitch/tilt ±60°, Roll 360°
Supported barcode symbologies: 5 mil Code 39, 5 mil Code 128, PDF417, DataMatrix 10 mil, 100% UPCA, 15 mil QR, 20 mil QR
Note: Full table of symbologies and decode ranges is available in the full datasheet.

Environmental conditions
Operating temperature: -20 ... 50 °C (-4 ... 122 °F)
Storage temperature: -30 ... 70 °C (-22 ... 158 °F) (scanner module only)

Mechanical data
Mass: 25 g
Dimensions (W x H x D): 39 mm x 20.8 mm x 41.4 mm

General information
Certifications shown with logos are valid only when integrated with Smart-Ex® 203.

Compatible series
Smart-Ex® 203

Technical specifications

• Model / designation: SM-Ex S203 SR
• Scan engine: SE4107 1D/2D scan module
• Sensor technology: Rolling-shutter
• Resolution: 1280 x 960 pixels (1.3 MP)
• Aiming: green LED
• Illumination: white
• Field of view: H 44.5°, V 33.5°
• Focal distance: from front of scan module 152.4 mm
• Orientation tolerance: Pitch ±60°, Tilt ±60°, Roll 360°
• Supported barcodes: incl. 5 mil Code 39, 5 mil Code 128, PDF417, DataMatrix 10 mil, 100% UPCA, 15 mil QR, 20 mil QR
• Operating temperature: -20 ... 50 °C
• Storage temperature: -30 ... 70 °C (module only)
• Mass: 25 g
• Dimensions (W x H x D): 39 mm x 20.8 mm x 41.4 mm
• Compatible series: Smart-Ex® 203
