Hand data matrix and barcode reader Ident-Ex® 02

1D2Dwith image capture

Overview
The Ident-Ex® 02 is the smallest, lightest wireless 1D/2D barcode scanner and reader designed for hazardous areas (Zone 1/21, Zone 2/22 and Class I/II Division 1/2). German engineered with a Honeywell scan engine, it is available in multiple ergonomic variants and includes IP68 protection, Bluetooth® 5.4 and fast USB-C charging.

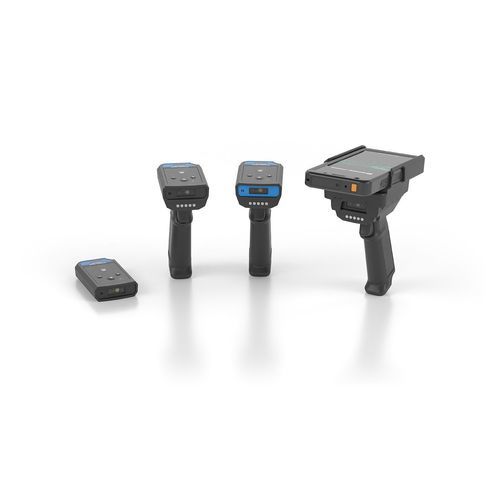

Designs / Variants

• Pocket Mode – stand-alone portable scanner (smallest & lightest)
• Grip – Pocket plus ergonomic trigger handle
• Grip+ – HMI version for integration with industrial HMI systems and optional in-zone charging (Flex Range only)
• Smart Grip – Grip with cradle to host a Smart-Ex® smartphone (convertible to/from Grip/Grip+)

Key Features

• Honeywell FlexRange™ N6803FR (Flex Range) and N6803LR (Long Range) scan engines
• Two scanning ranges: Flex Range (up to 10 m) and Long Range (up to 25 m) — Grip+ supports Flex Range only
• Capable of scanning all major 1D and 2D symbologies including QR, Data Matrix, PDF417 and many postal codes
• Bluetooth® 5.4 with Bluetooth Low Energy for wireless pairing to devices and systems
• Fast USB Type-C charging; Grip / Grip+ / Smart Grip optionally support magnetic charging pins and docking stations; Grip+ supports optional in-zone charging via special HMI interface
• 1430 mAh Li‑ion battery offering operation for a full shift
• Robust protection: IP68 according to EN/IEC 60529
• Compact, lightweight and ergonomic for fatigue-free continuous use

Configuration & Use
Multiple configurations are offered for Zone 1 (DZ1) and Zone 2 (DZ2) areas, in Flex Range and Long Range, and in Pocket, Grip, Grip+ and Smart Grip formats. The Smart Grip variant can host Smart-Ex® smartphones for integrated mobile workflows. The product supports stand-alone operation with internal battery and memory for flexible use.

Scope of Delivery

• Scanner (variant dependent)
• USB-C charging cable
• Documentation
• Grip (only for Ident-Ex 02 Grip, Grip+ and Smart Grip)
• Cradle (only for Ident-Ex 02 Smart Grip)

Configuration Table
Article No. | Configuration Code | Model
70198683-100000 | IDENT-EX02-DZ1-AI--F-P00-00-.. | DZ1, Flex Range, Pocket
70198683-100001 | IDENT-EX02-DZ1-AI--F-G00-00-.. | DZ1, Flex Range, Grip
70198683-100002 | IDENT-EX02-DZ1-AI--F-H00-00-.. | DZ1, Flex Range, Grip+
70198683-100003 | IDENT-EX02-DZ1-AI--L-P00-00-.. | DZ1, Long Range, Pocket
70198683-100004 | IDENT-EX02-DZ1-AI--L-G00-00-.. | DZ1, Long Range, Grip
(additional DZ2 / Smart Grip variants available following same pattern)

Applications & Integration
The Ident-Ex 02 is intended for scanning, imaging and AutoID tasks across industries including warehousing & logistics, life sciences & pharmaceuticals (HMI version), fine chemicals, asset tracking, operator rounds and maintenance/inspection tasks. Grip+ is designed for integration with industrial HMI systems and can be charged via compatible HMI interfaces.

Technical specifications

• Scan engine: Honeywell FlexRange™ N6803FR and N6803LR
• Read distance: Flex Range up to 10 m; Long Range up to 25 m
• Field of view: Flex Range 48° x 21° (near) / 20° x 12° (far); Long Range 48° x 21° (near) / 13.7° x 7.6° (far)
• Resolution: Flex Range 1920 x 800 px (near) / 1280 x 800 px (far); Long Range 1920 x 800 px
• Scan rate: Flex Range 40 fps default (60 fps max); Long Range 30 fps default
• Aimer: Flex Range green laser dot; Long Range red laser dot (Class 2)
• Illumination: white
• Supported symbologies: Linear (Codabar, Code 128, Code 39, Code 93, EAN/JAN, Interleaved 2 of 5, MSI, GS1 Databar, UPC, etc.), 2D Stacked (PDF417, MicroPDF417, Codablock), 2D Matrix (Aztec, Data Matrix, QR Code, MaxiCode, Han Xin, etc.), Postal (Australian Post, British Post, Canada Post, China Post, Japan Post, Korea Post, Netherlands Post, Planet Code, Postnet)
• Communication: Bluetooth® 5.4 (BLE)
• Battery: Li‑Ion 1430 mAh (operates for an entire shift)
• I/O ports: USB-C; Grip / Grip+ / Smart Grip additionally provide magnetic charging pins
• Degree of protection: IP68 (protected against continuous immersion: 1.5 m for 45 min) according to EN/IEC 60529
• Mass: Pocket approx. 162.5 g; Grip / Grip+ approx. 280.5 g; Smart Grip approx. 356 g (without smartphone)
• Dimensions (L x W x H): Pocket 98.4 x 57.11 x 20.4 mm (21.63 mm with buttons); Grip / Grip+ 113 x 57 x 151 mm; Smart Grip 128 x 90 x 190 mm (without smartphone)
