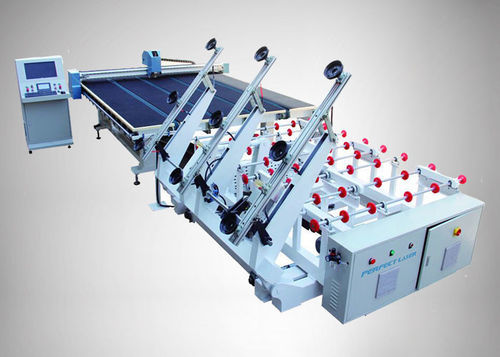

Glass cutting table PEG-7015

rotary-knifevacuumsuction

Product overview
The PEG-7015 glass cutting production line is a fully automatic CNC solution for industrial glass processing and blanking. The line includes upper film feeding table, computer-controlled cutting machine, splitting (smashing) unit and lower film table. System control via CNC and CAD-based cutting optimizes material usage and supports customer-specific configurations. It processes glass from 3 to 19 mm thickness with an adjustable transfer speed and a maximum loading capacity suitable for heavy production.

Key features

• Mechanical flip (single-flip single-station) with adjustable rotation angle (approx. 95°–98°) for efficient sheet handling.
• Suction system: nominal suction depth 700 mm with suction cup extension up to 150 mm; supports direct loading from iron frames without auxiliary frames.
• 360° rotating cutting head; supports upper and lower cutting for straight lines and complex shapes.
• Imported industrial felt underlay (fiber/wool) for improved flatness and antistatic properties to reduce surface scratches.

Applications

• Cutting linear and special-shaped glass for appliances and mirrors.
• Furniture glass and decorative panels.
• Building curtain walls, facades and architectural glazing.
• Laminated, insulated (hollow) glass, tempered and solar glass processing.

Components & mechanical configuration

• Main components: single-flip single-station automatic loading table; automatic CNC cutting machine; gas-floating splitting table.
• Drive and transmission: reinforced flip sprocket chain, imported PU transfer rollers, CB transport/flip motor.
• Suction and sealing: imported nitrile-butadiene vacuum suction cups (double adsorption) and high-performance vacuum pump (top Chinese brand).
• Cutting consumables: imported BOHLE cutting wheel and wheel clamp; working table: waterproof board with flatness ≤ ±0.20 mm/m; rack: Japan KHK.

Technical specifications

• Model: PEG-7015
• Brand: Perfect Laser
• Origin: China
• Maximum cutting size: 7000 x 1300 mm
• Minimum loading size: 1500 x 1300 mm
• Glass thickness range: 3–19 mm
• Transfer speed: 0–40 m/min (adjustable)
• Loading cycle: 40–60 s (adjustable)
• Maximum suction depth: 650–700 mm (depending on configuration)
• Maximum loading weight: 1200 kg
• Number of loading arms (one side): 6
• Suction cups per single arm: 4
• Installation power supply: 380V/50Hz (customer options available)
• Installed power / actual equipment power: 8 kW
• Compressed air: 0.3–0.6 MPa (depending on mechanical configuration)
• Vacuum pressure: -70 ~ -90 kPa (adjustable)
• Cutting bridge speed: 0–180 m/min (adjustable)
• Cutting head positioning accuracy: ≤ ±0.2 mm
• Straight line parallelism: ≤ ±0.25 mm/m; diagonal accuracy: ≤ ±0.5 mm/m
• Total weight (approx.): 3 T

Packaging & delivery

• Sea‑worthy packaging for export.
• Standard lead time: 10–15 working days (subject to order and configuration).
• Professional packing team and logistics handling; after‑sales support and troubleshooting available.

Highlights
Fully automatic CNC glass cutting machine — SGS glass cutting machine, PEG-7015, max cut 7000x1300 mm, suitable for industrial production lines.
